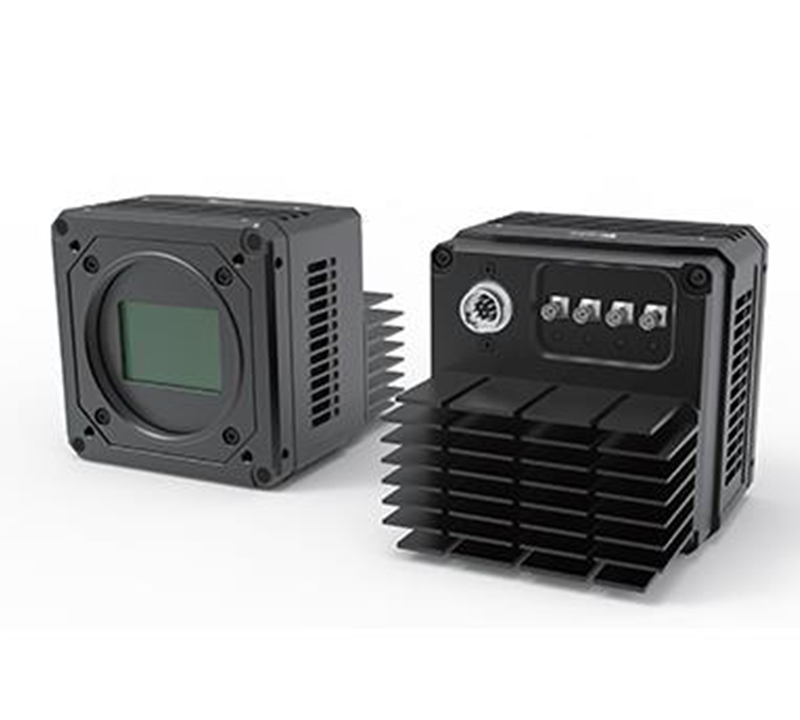

Industrial High Resolution Large Format Cameras OPT-CD1-C650-XG3-01
- Resolution of 9344 × 7000, pixel size of 3.2 µm × 3.2 µm.
- Adopts global shutter CMOS to provide high dynamic range, SNR, and high-quality images.
- Supports LSC sequencer polling function.
- Adopts CXP-12 interface to transmit data.
- Supports the flat field correction.
- Compatible with CoaXPress Protocol, GenlCam Standard, and third-party software based on the protocol and standard.
- Coincidence CE, FCC, RoHS, KC Certification.
Features
| Model |
OPT-CD1-C650-XG3-01 |
| Resolution |
9344×7000 |
| Pixel Size(μ㎡) |
3.2x3.2 |
| Sensor Type |
CMOS Global |
| Shutter |
Global |
| Sensor |
GMAX3265 |
| Frame Rate(FPS) |
71 |
| Sensor Format |
29.9mm×22.4mm |
| Interface |
CXP-12 |
| Lens Mount |
M58*0.75, optical back focal length 11.48 mm (0.5") |
| Exposure Time |
15 μs to 10 sec |
| Image Format |
Bayer BG 8/10/12 |
| Gain(dB) |
1.25x |
| Dynamic Range(dB) |
66 dB |
| Power Supply |
24 VDC, CXP-1 and CXP-2 connectors support PoCXP |
| Weight |
Approx. 650g (1.4 lb.) |
| Power Consumption（W） |
Typ. 13.2 W@24 VDC |
| Temperature |
Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F) |
| GPIO |
12-pin connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), and RS-232 × 1 |

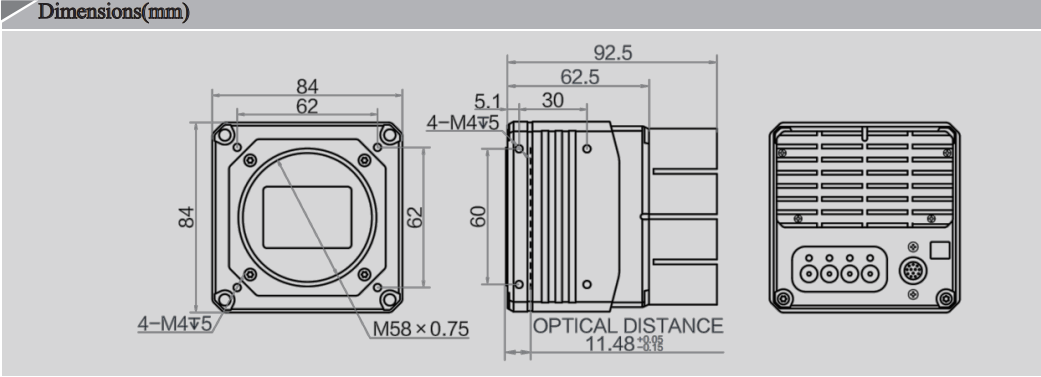

| Dimensions |
84 mm × 84 mm × 62.5 mm (3.3" × 3.3" × 2.5") |
| Mono/Color |
C |
