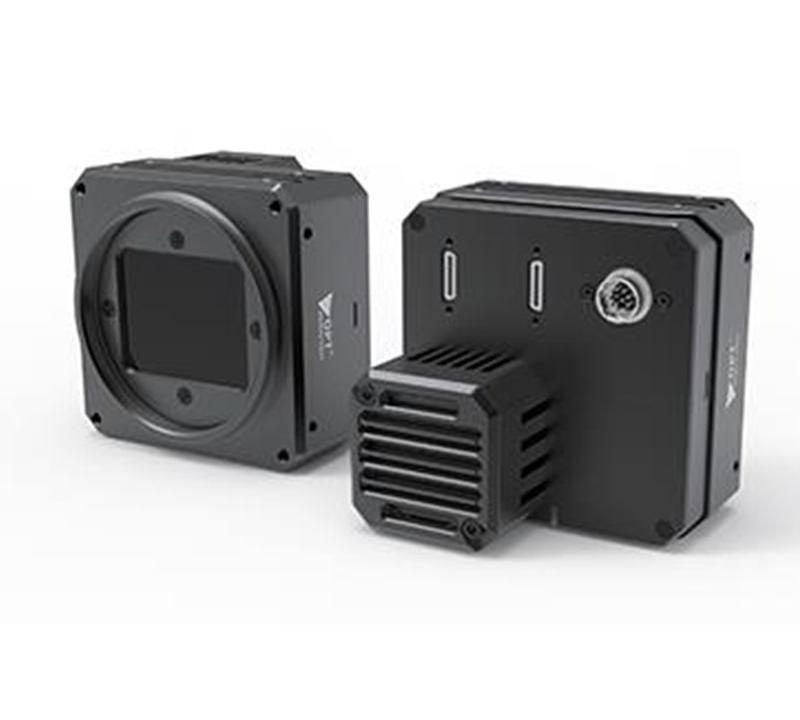

Industrial High Resolution Large Format Cameras OPT-CD1-M1100-LR1-01
- Supports auto or manual adjustment of gain and exposure time, and manual adjustment of LUT and Gamma correction.
- Supports FFC correction function.
- Supports configuration modes of Base, Medium, Full and 80-bit via the Camera Link interface.
- Compatible with Camera Link V2.0 Protocol, GenlCam.
- Standard, and the frame grabber software meeting with GenICam Protocol.
- Coincidence CE, FCC, RoHS, KC Certification.
Features
| Model |
OPT-CD1-M1100-LR1-01 |
| Resolution |
11648×8740 |
| Pixel Size(μ㎡) |
3.76x3.76 |
| Sensor Type |
CMOS Rolling |
| Shutter |
Rolling |
| Sensor |
IMX461 |
| Frame Rate(FPS) |
8.1 |
| Sensor Format |
55mm |
| Interface |
Camera Link (SDR) |
| Lens Mount |
M72*0.75, flange back focal length 19.55 mm (0.8") |
| Exposure Time |
14 μs to 10 sec |
| Image Format |
ADC 12-bit mode: Mono 8/10/12; ADC 16-bit mode: Mono 8/10/12/16 |
| Gain(dB) |
0 dB to 36 dB |
| Dynamic Range(dB) |
78 dB |
| Power Supply |
Camera with fan: 12 VDC to 24 VDC |
| Weight |
Camera with fan: Approx. 790g (1.7 lb.) |
| Power Consumption（W） |
Camera with fan: Typ. 14 W@24 VDC |
| Temperature |
Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F) |
| GPIO |
12-pin connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), and RS-232 × 1. Camera Link interface provides I/O (CC1/CC2/CC3/CC4) |

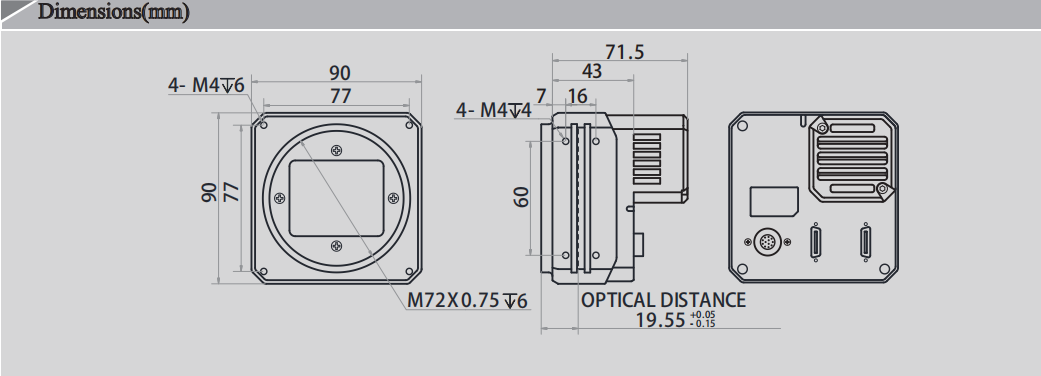

| Dimensions |
Camera with fan: 90 mm × 90 mm × 71.5 mm (3.5" × 3.5" × 2.8") |
| Mono/Color |
M |
