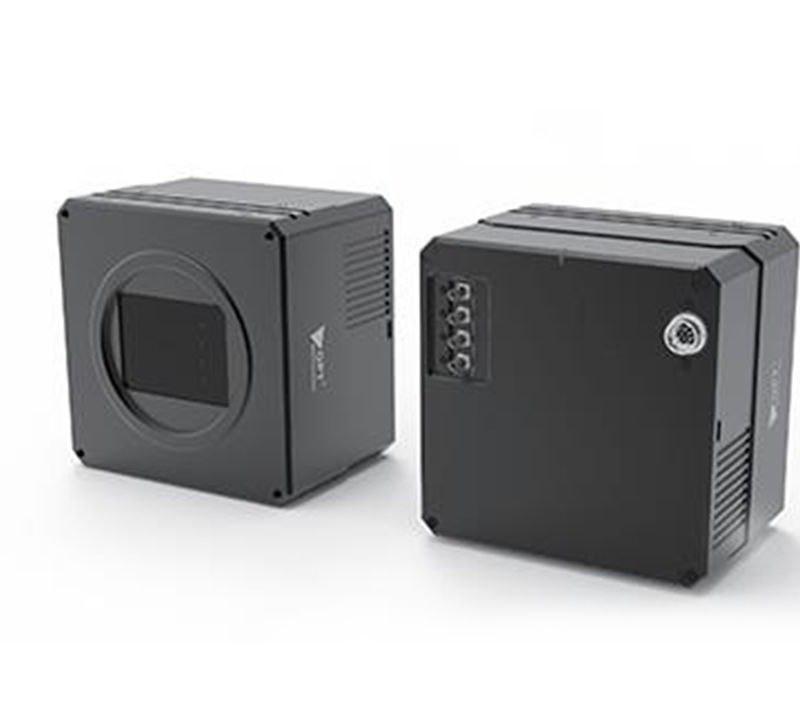

Industrial High Resolution Large Format Cameras OPT-CD1-M1510-XR1-02

Resolution of 14208 × 10640, pixel size of 3.76 µm × 3.76 µm.
Adopts rolling shutter CMOS to provide high dynamic range, SNR, and high-quality images.
Adopts CXP-6 interface to transmit data.
Supports the flat field correction.
Compatible with CoaXPress Proto col, GenlCam Standard, third-party software based on the protocol and standard.
Coincidence CE, FCC, RoHS, KC Certification.

add to cart Inquiry Now

Features

Model	OPT-CD1-M1510-XR1-02
Resolution	14208×10640
Pixel Size(μ㎡)	3.76x3.76
Sensor Type	CMOS Rolling
Shutter	Rolling
Sensor	IMX411
Frame Rate(FPS)	6.2
Sensor Format	66.7mm
Interface	CXP-6
Lens Mount	M72*0.75, optical back focal length 19.55 mm (0.8")
Exposure Time	15 μs to 10 sec
Image Format	Mono 8/10/12/16
Gain(dB)	0 dB to 30 dB
Dynamic Range(dB)	78.7 dB
Power Supply	Camera with TEC: 24 VDC
Weight	Camera with TEC: approx. 1.9 kg (4.2 lb.)
Power Consumption（W）	Camera with TEC non-cooling: typ. 21 W@24 VDC Camera with TEC cooling: typ. 55 W@24 VDC
Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
GPIO	12-pin Hirose connector provides power and I/O, including opto-isolated input × 1 (Line 0), optoisolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), and RS-232 × 1 Power supply Camera with fan: 12 VDC to 24

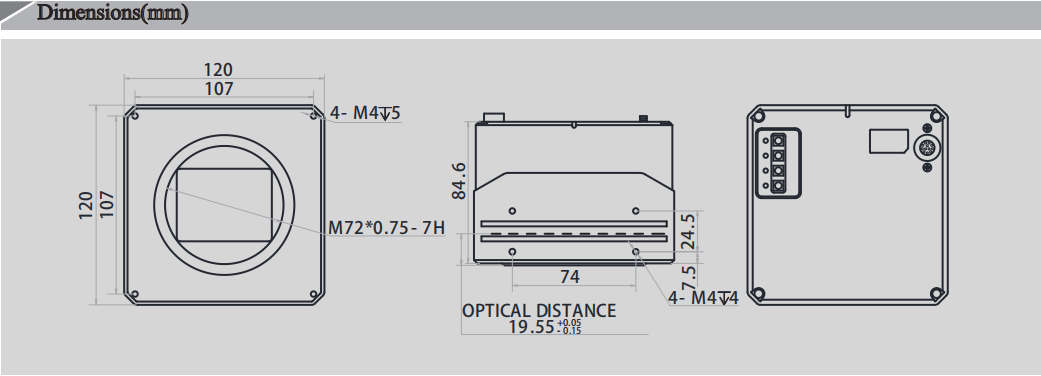

Dimensions	Camera with TEC: 120 mm × 120 mm × 84.6 mm (4.7" × 4.7" × 3.3")
Mono/Color	M
