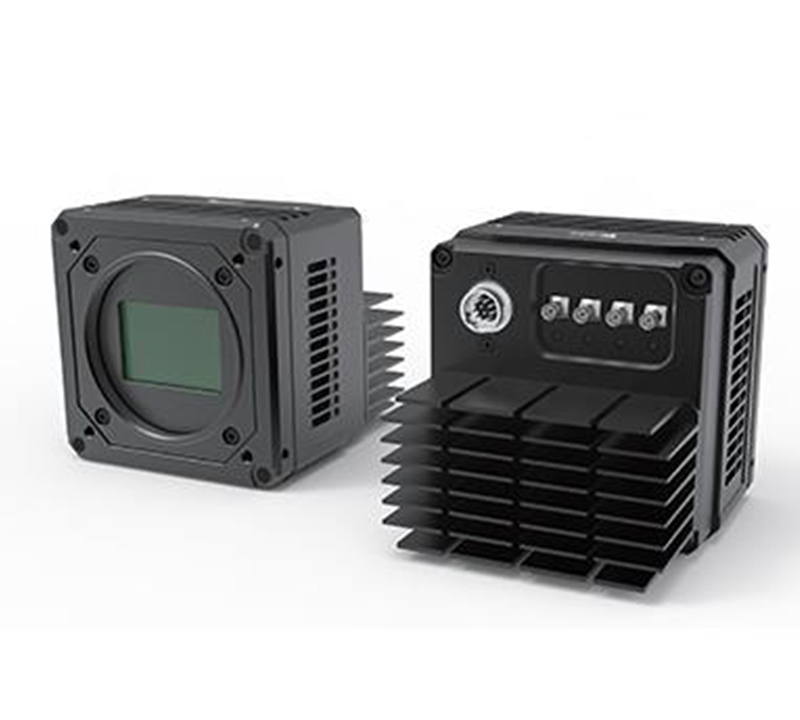

Industrial High Resolution Large Format Cameras OPT-CD1-M210-XG3-01
- Resolution of 5120 × 4096, and pixel size of 4.5 µm × 4.5 µm.
- Adopts global shutter CMOS to provide high dynamic range, SNR, and high-quality images.
- Supports sequencer polling function.
- Low power consumption without fans.
- Adopts CXP-12 interface to transmit data.
- Compatible with CoaXPress Protocol and GenlCam Standard.
- Coincidence CE, FCC, RoHS, KC Certification.
Features
| Model |
OPT-CD1-M210-XG3-01 |
| Resolution |
5120×4096 |
| Pixel Size(μ㎡) |
4.5x4.5 |
| Sensor Type |
CMOS Global |
| Shutter |
Global |
| Sensor |
Gsprint 4521 |
| Frame Rate(FPS) |
222 |
| Sensor Format |
23.04mm×18.43mm |
| Interface |
CXP-12 |
| Lens Mount |
M58*0.75, optical back focal length 11.48 mm (0.5") |
| Exposure Time |
4 μs to 10 sec |
| Image Format |
Mono 8/10/12 |
| Gain(dB) |
Supports 1.0 ×, 2.0 ×, 4.0 × |
| Dynamic Range(dB) |
65 dB |
| Power Supply |
24 VDC, CXP-0 and CXP-1 connectors support PoCXP |
| Weight |
Approx. 650g (1.4 lb.) |
| Power Consumption（W） |
Typ. 18 W@24 VDC |
| Temperature |
Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F) |
| GPIO |
12-pin Hirose connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), and RS-232 × 1. |

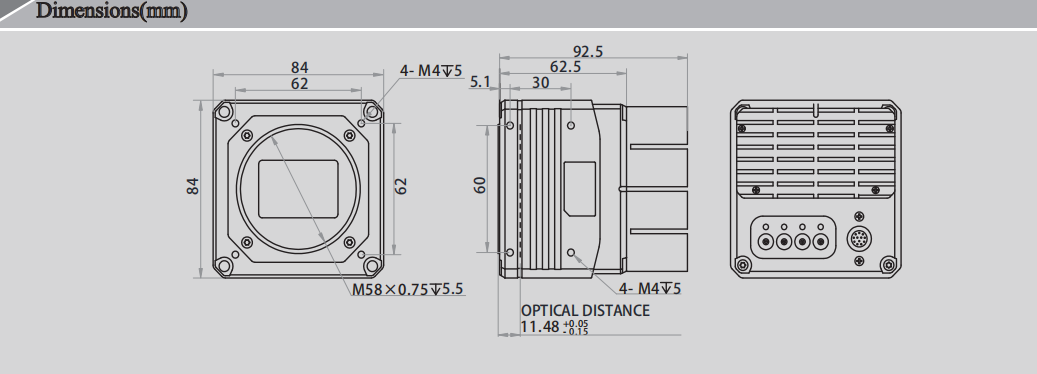

| Dimensions |
84 mm × 84 mm × 62.5 mm (3.3" × 3.3" × 2.5") |
| Mono/Color |
M |
