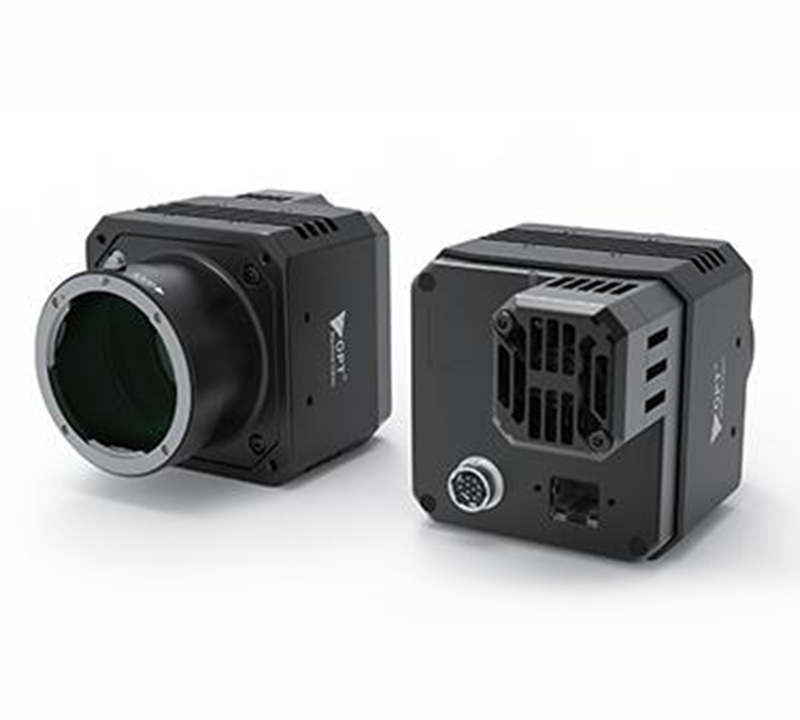

Industrial High Resolution Large Format Cameras OPT-CD1-M310-GG1-01
- Resolution of 6464 × 4852, and pixel size of 3.45 μm × 3.45 μm.
- Supports auto and manual adjustment for gain, exposure control, LUT, Gamma correction, etc.
- Adopts GigE interface providing max. transmission distance of 100 meters without relay.
- Compact design with mounting holes on panels for flexible mounting.
- Compatible with GigE Vision V2.0 Protocol, GenlCam Standard, and the third-party software based on the protocol and standard.
- Coincidence CE, FCC, RoHS, KC Certification.
Features
| Model |
OPT-CD1-M310-GG1-01 |
| Resolution |
6464×4852 |
| Pixel Size(μ㎡) |
3.45x3.45 |
| Sensor Type |
CMOS Global |
| Shutter |
Global |
| Sensor |
IMX342 |
| Frame Rate(FPS) |
3.9 |
| Sensor Format |
22.3mmx16.7mm |
| Interface |
GigE |
| Lens Mount |
F-mount, optical back focal length 46.5 mm (1.8") |
| Exposure Time |
UltraShort exposure mode: 3 μs to 33 μs Standard exposure mode: 36 μs to 2 sec |
| Image Format |
Mono 8/10/10p/12/12p |
| Gain(dB) |
0 dB to 24 dB |
| Dynamic Range(dB) |
73 dB |
| Power Supply |
9 VDC to 24 VDC |
| Weight |
F-mount with fan: approx. 600g (1.3 lb.) |
| Power Consumption（W） |
Typ. 9 W@12 VDC |
| Temperature |
Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F) |
| GPIO |
12-pin Hirose connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), and RS-232 × 1. |

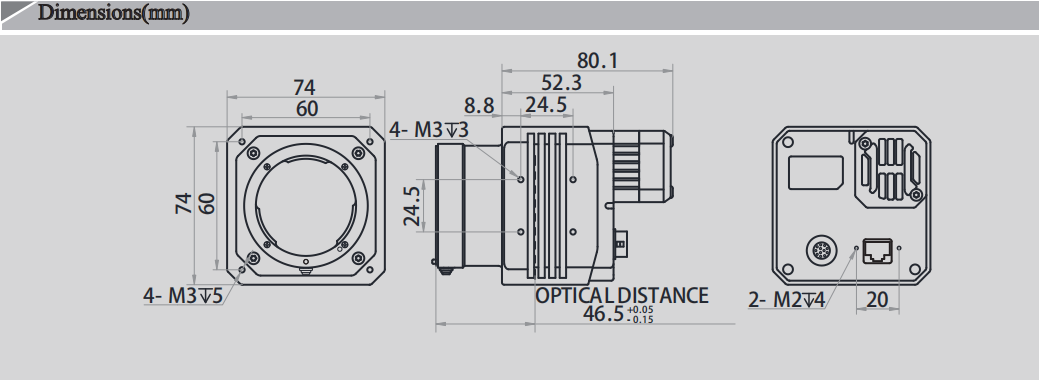

| Dimensions |
F-mount with fan: 74 mm × 74 mm × 80.1 mm (2.9" × 2.9" × 3.2") |
| Mono/Color |
M |
