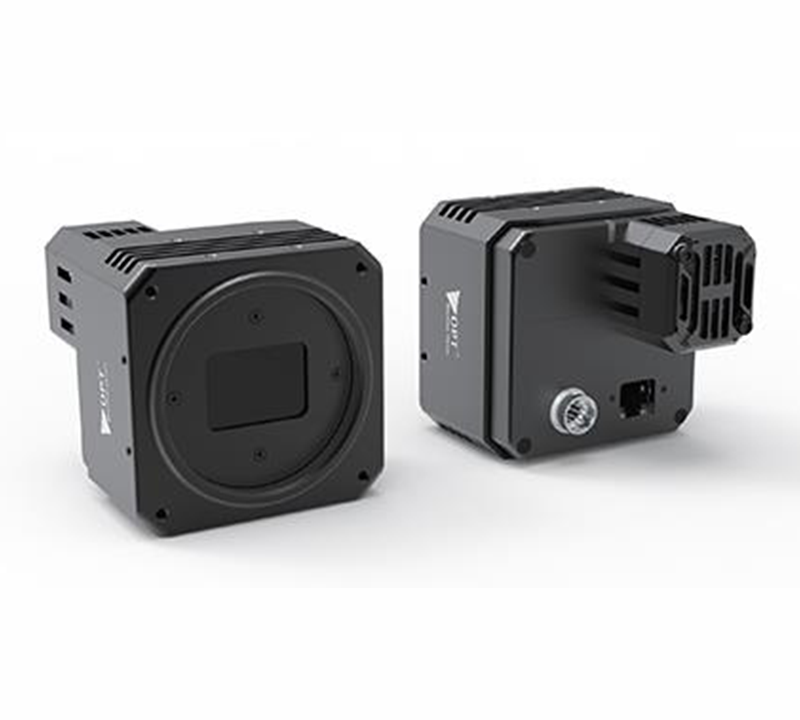

Industrial High Resolution Large Format Cameras OPT-CD1-M500-XGG3-02
- Resolution of 7008 × 7000, and pixel size of 3.2 μm × 3.2 μm.
- Supports auto or manual adjustment of gain, exposure time, and manual adjustment of Gamma correction, LUT, etc.
- Adopts 10 GigE interface, compatible with GigE, and max. transmission distance of 100 meters.
- Compact design with mounting holes on panels for flexible mounting.
- Compatible with GigE Vision V2.0 Protocol, GenlCam Standard, and third-party software based on the protocol and standard.
- Coincidence CE, FCC, RoHS, KC Certification.
Features
| Model |
OPT-CD1-M500-XGG3-02 |
| Resolution |
7008x7000 |
| Pixel Size(μ㎡) |
3.2x3.2 |
| Sensor Type |
CMOS Global |
| Shutter |
Global |
| Sensor |
GMAX |
| Frame Rate(FPS) |
15.5 |
| Sensor Format |
22.4mm×22.4mm |
| Interface |
10 GigE |
| Lens Mount |
M58-mount, flange back focal length: 11.48 mm (0.5") |
| Exposure Time |
15 μs to 10 sec |
| Image Format |
Mono 8/10/10Packed/12/12Packed |
| Gain(dB) |
1.25 X to 6 X |
| Dynamic Range(dB) |
66 dB |
| Power Supply |
9 VDC to 24 VDC |
| Weight |
Approx. 550g (1.2 lb) |
| Power Consumption（W） |
Typ. 11 W@12 VDC |
| Temperature |
Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F) |
| GPIO |
12-pin connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), |

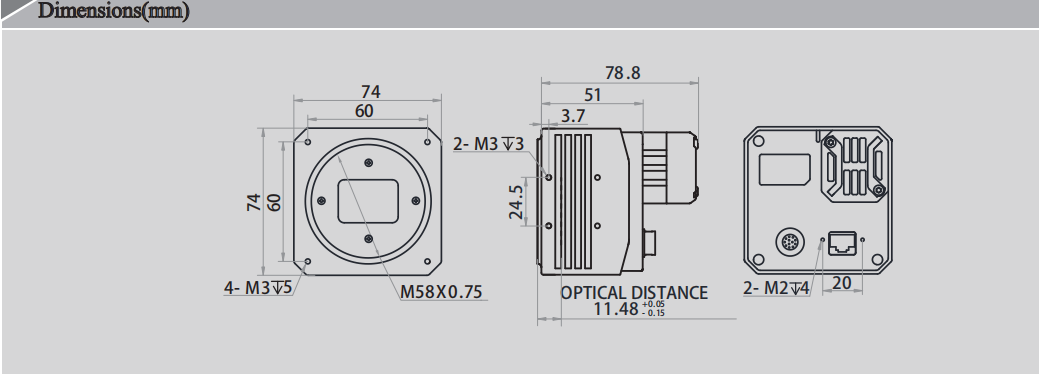

| Dimensions |
74 mm × 74 mm × 78.8 mm (2.9" × 2.9" × 3.1") |
| Mono/Color |
M |
