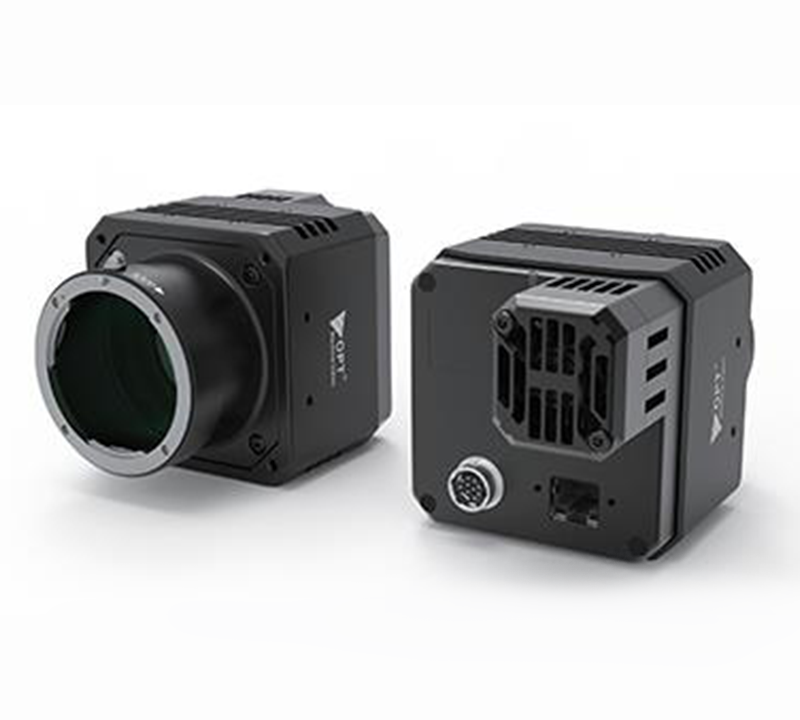

Industrial High Resolution Large Format Cameras OPT-CD1-M650-XGG3-01
- Resolution of 9344 × 7000, and pixel size of 3.2 μm × 3.2 μm.
- Adopts 10 GigE interface providing max. transmission distance of 100 meters without relay.
- Supports auto or manual adjustment for gain, exposure time, and manual adjustment for Look.
- Up Table (LUT), Gamma correction, etc.
- Compatible with GigE Vision Protocol V2.0,GenlCam Standard, and third-party software based on protocols.
- Coincidence CE, FCC, RoHS, KC Certification.
Features
| Model |
OPT-CD1-M650-XGG3-01 |
| Resolution |
9344×7000 |
| Pixel Size(μ㎡) |
3.2x3.2 |
| Sensor Type |
CMOS Global |
| Shutter |
Global |
| Sensor |
GMAX3265 |
| Frame Rate(FPS) |
15.5 |
| Sensor Format |
29.9mm×22.4mm |
| Interface |
10 GigE |
| Lens Mount |
F-mount, optical back focal length 46.5 mm (1.8") |
| Exposure Time |
15 μs to 10 sec |
| Image Format |
Mono 8/10/10p/12/12p |
| Gain(dB) |
1.25X to 6X |
| Dynamic Range(dB) |
66 dB |
| Power Supply |
9 VDC to 24 VDC |
| Weight |
F-mount with fan: approx. 600g (1.3 lb.) |
| Power Consumption（W） |
Typ. 11 W@12 VDC |
| Temperature |
Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F) |
| GPIO |
12-pin Hirose connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), and RS-232 × 1 |

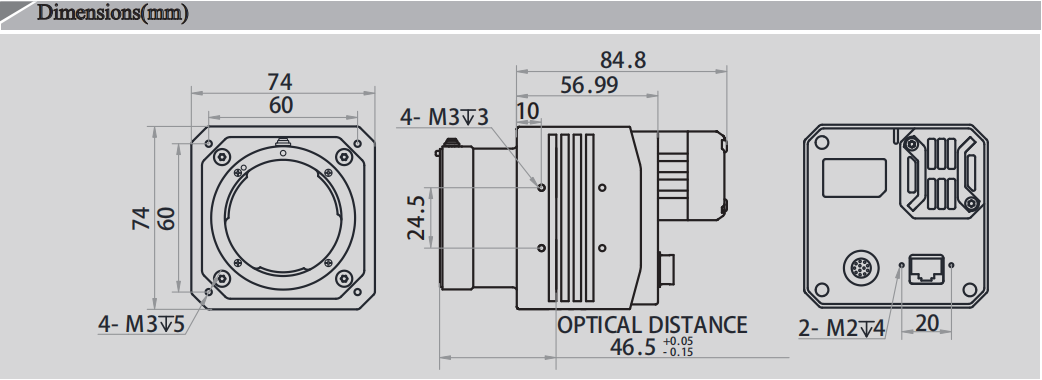

| Dimensions |
F-mount with fan: 74 mm × 74 mm × 84.8 mm (2.9" × 2.9" × 3.3") |
| Mono/Color |
M |
