Camera & Optics

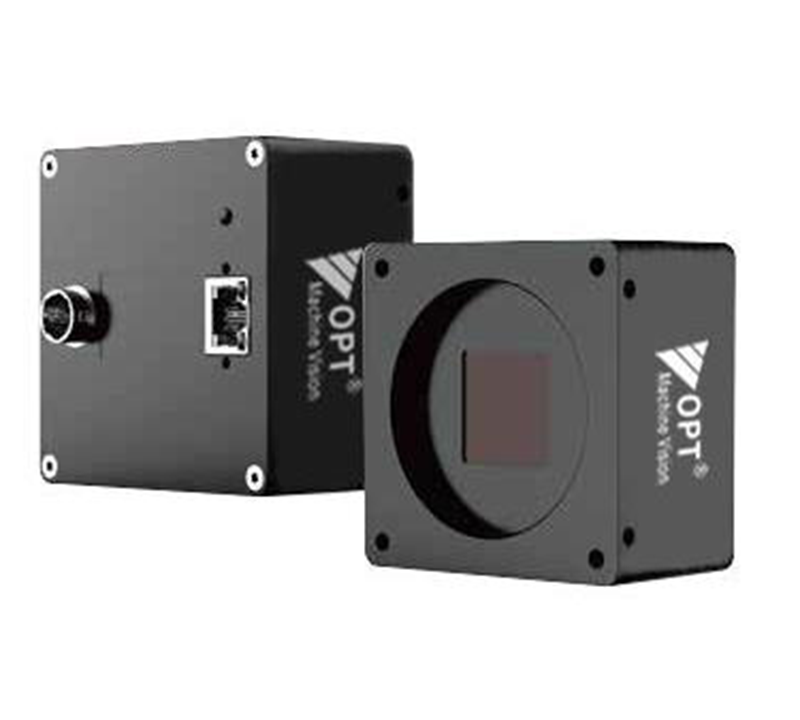

Industrial High Resolution Large Format Cameras OPT-CM2600-GM-04
- 1Gbps Ethernet interface , max 100m transmission.
- Support multiple image data formats.
- Confrom to CE, FCC, RoHS certifications.
- Software trigger/Hardware trigger/Free run mode.
- Compatible with GigE Vision V2.0 protocol and GenlCam standard.
Features
| Model |
OPT-CM2600-GM-04 |
| Resolution |
5120×5120 |
| Pixel Size(μ㎡) |
4.5x4.5 |
| Sensor Type |
CMOS Global |
| Shutter |
Global |
| Sensor |
PYTHON 25K |
| Frame Rate(FPS) |
4 |
| Sensor Format |
23.0mm×23.0mm |
| Interface |
GigE |
| Lens Mount |
M58×0.75 |
| Exposure Time |
1μs~1s |
| Image Format |
Mono8/10/10Packed |
| Gain(dB) |
x1~x32 |
| Dynamic Range(dB) |
58dB |
| Power Supply |
Power supply via 12 Hirose interface DC,voltage of 24V |
| Weight |
430g |
| Power Consumption（W） |
12V≈9W |
| Temperature |
Storage temperature：-30℃~ + 80℃; Operation temperature： 0℃~+50℃ |
| GPIO |
12 pin Hirose: 3 Opto-isolated input, 3 Opto-isolated output,route 1 RS232 serial port |

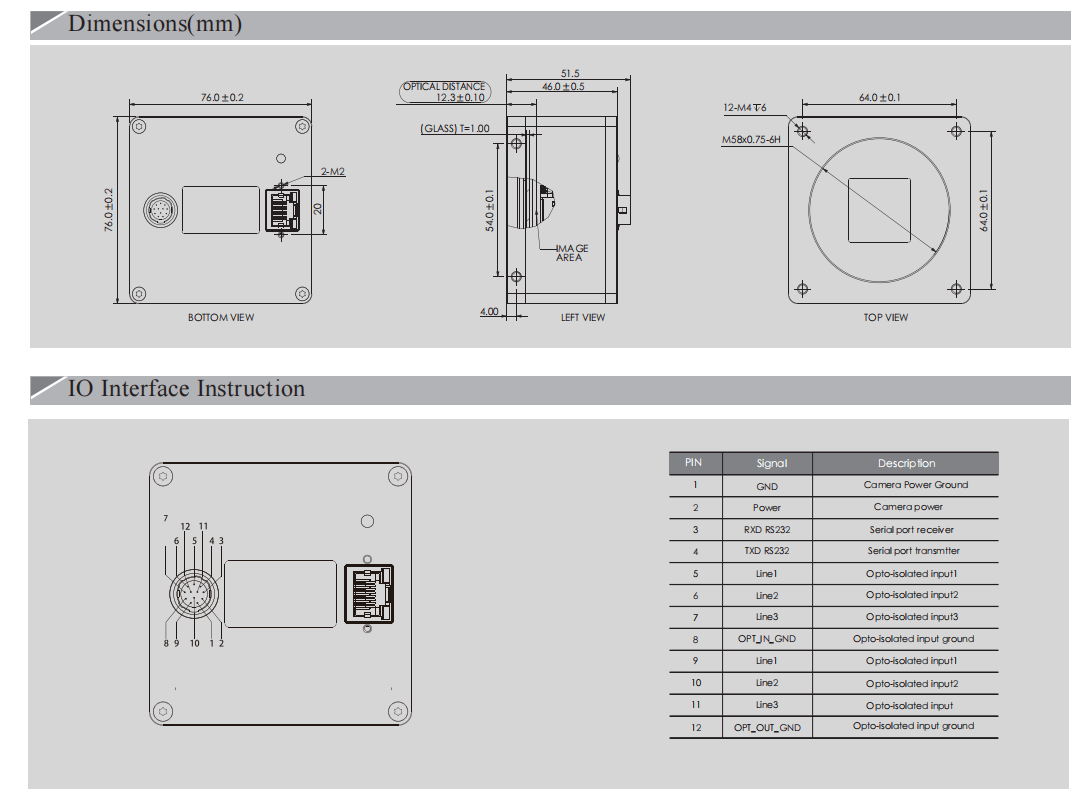

| Dimensions |
72mm×72mm×46mm |
| Conformity |
GigEVision V2.0 and GenlCam |
| Mono/Color |
M |
