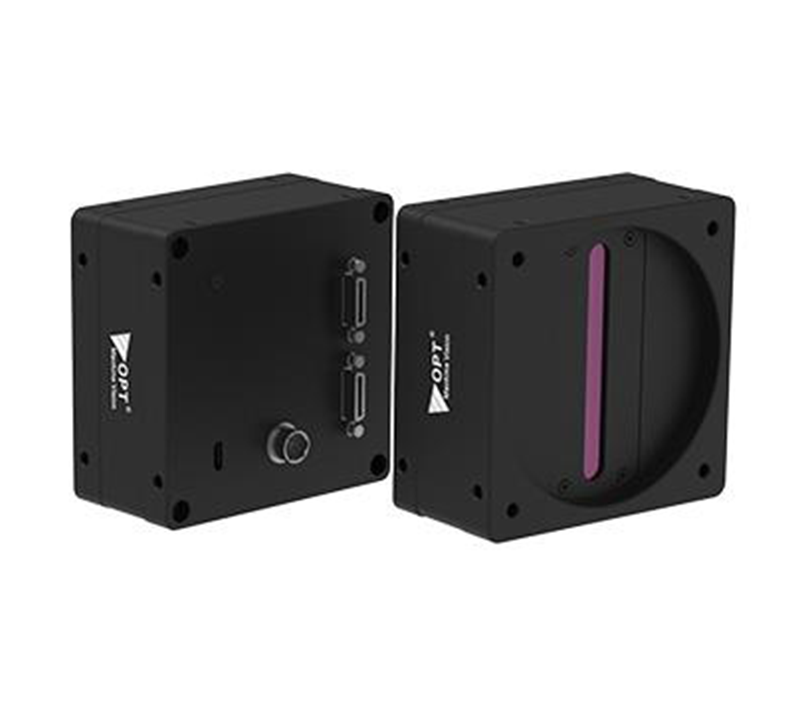

Industrial Line Scan Cameras OPT-CL1-M16-L-01
- Camera Link supports Full, Medium, Base and Deca mode with maximum 6.8Gbps bandwidth.
- Supports external trigger, free run mode and multiple modes.
- Supports Gamma correction and other ISP functions.
- Compatible with Camera Link protocol and GenICam.
- standard;Applies DC +12-+24V power supply.
- Comply with CE, FCC, RoHS certifications.
Features
| Model |
OPT-CL1-M16-L-01 |
| Resolution |
16384 × 1 |
| Pixel Size(μ㎡) |
3.5*3.5 |
| Sensor Type |
Line |
| Line Frequency（KHz） |
50 |
| Interface |
Camera Link (SDR) |
| Lens Mount |
M72（FBL 12） |
| Exposure Time |
3μs~100ms |
| Image Format |
Mono8/10 |
| Gain(dB) |
X1~X32 |
| Dynamic Range(dB) |
64dB |
| Power Supply |
Power supplied via a 6-core Hirose interface，DC 12V-24V |
| Weight |
0.36kg |
| Power Consumption（W） |
6W |
| Temperature |
Storage temperature：-30℃~ + 80℃; Operation temperature： 0℃~+50℃ |
| GPIO |
CameraLink, use to camera control and data transmission, support base, medium, full/Deco |

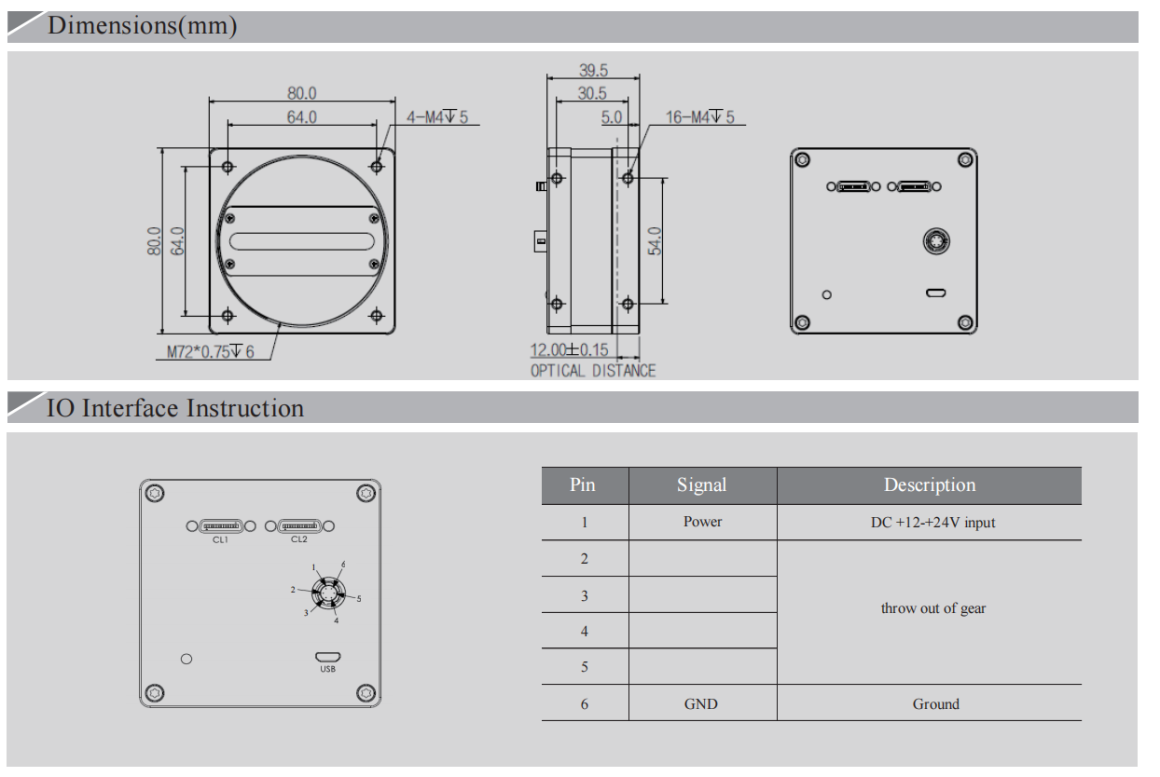

| Dimensions |
80mm×80mm×39.5mm |
| Conformity |
Compatible with Camera Link protocol and GenICam standard |
| Mono/Color |
M |
