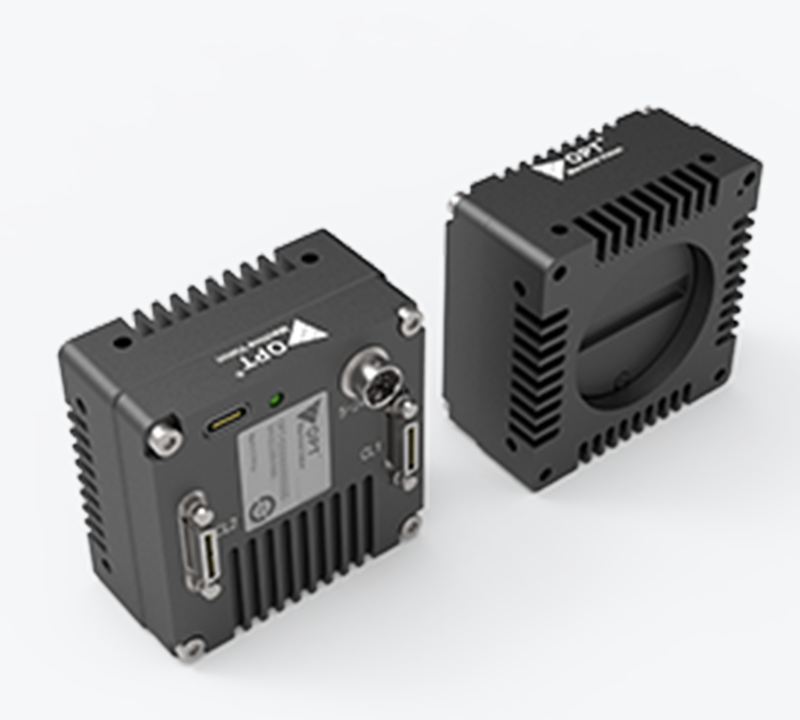

Industrial Line Scan Cameras OPT-CLC204-L68-17
- Line Rate up to 68KHz.
- High sensitivity and Low noise.
- FFC/ROI/LUT/Bining.
- Flexible and simple GUI configuration toll.
- Internal trigger,external trigger,optional.
- Power supply:DC 12V(± 10%).
Features
| Model |
OPT-CLC204-L68-17 |
| Resolution |
4096 × 2 |
| Pixel Size(μ㎡) |
7*7 |
| Sensor Type |
Line |
| Line Frequency（KHz） |
68 |
| Interface |
Camera Link (SDR) |
| Lens Mount |
M42*1 |
| Exposure Time |
2μs - 10s |
| Image Format |
Color |
| Gain(dB) |
x1/x2/x3/x4（analogue gain）0.004x-8.00x（digital gain） |
| Dynamic Range(dB) |
65.6dB |
| Power Supply |
Hirose HR10A (6-pin) DC 12V(±10%) 3A |
| Power Consumption（W） |
4.9 W |
| Temperature |
Storage Temerature :-20 ~ 75℃;Operating Temperature :0~65℃ |

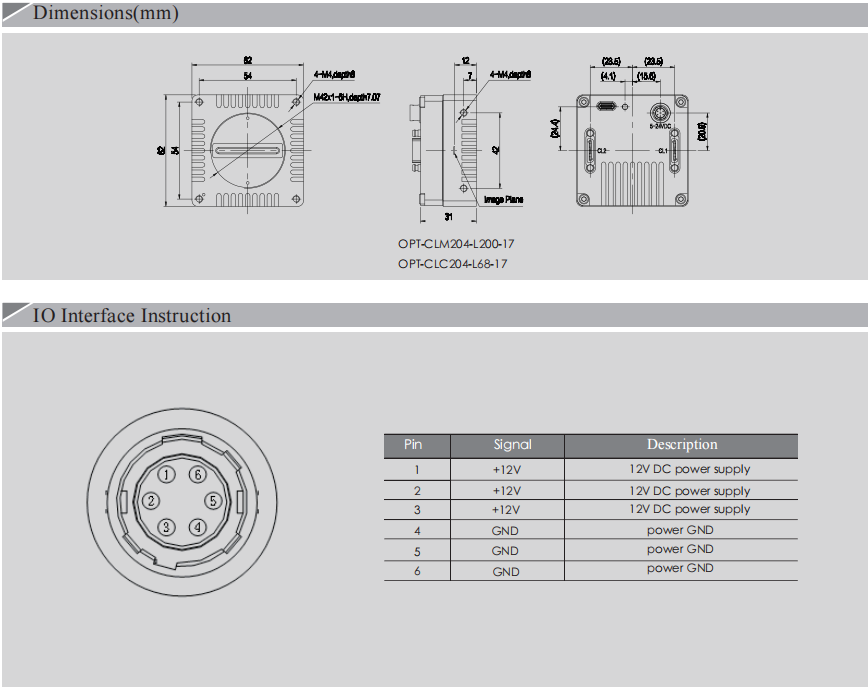

| Dimensions |
62.0mm(W) x 62.0mm(H) x 31.0mm(D) |
| Mono/Color |
C |
