Camera & Optics

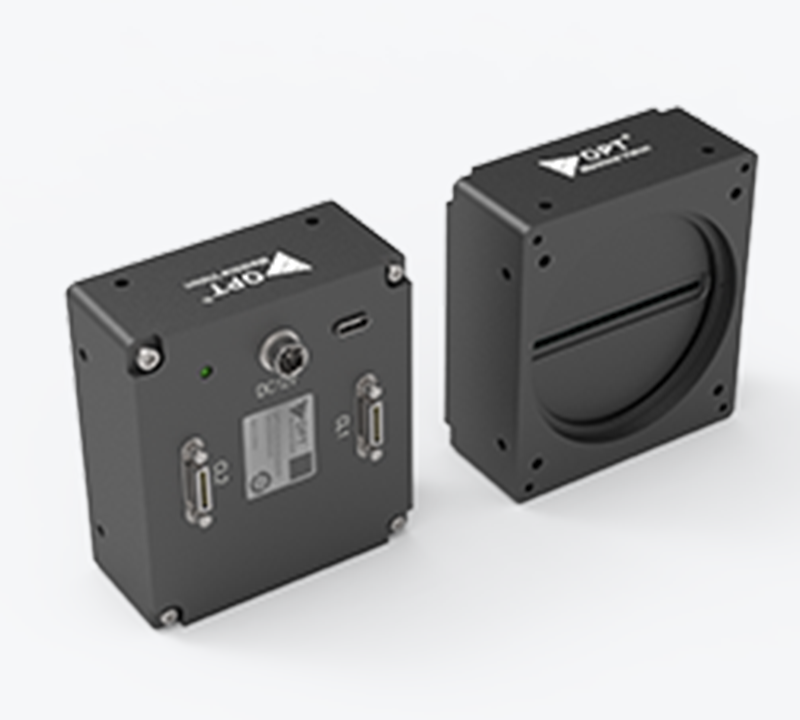

Industrial Line Scan Cameras OPT-CLM108-L80-17
- Up to 80KHz Line Rate.
- High sensitivity and Low noise.
- FFC and Control expansion.
- Carema Link interface.
- Serial port control command,GUI configuration tool,optional.
- Internal tigger,External trigger,optional.
- Power supply:DC 12V(±10%).
Features
| Model |
OPT-CLM108-L80-17 |
| Resolution |
8192 × 1 |
| Pixel Size(μ㎡) |
7*7 |
| Sensor Type |
Line |
| Sensor |
CMOS |
| Line Frequency（KHz） |
80 |
| Interface |
Camera Link (SDR) |
| Lens Mount |
M72×0.75 |
| Exposure Time |
2.5μs - 10s |
| Gain(dB) |
1x-8x（analogue gain）0.01x-8.0x（digital gain） |
| Dynamic Range(dB) |
64dB |
| Power Supply |
Hirose HR10A (6-pin) DC 12V(±10%) 0.5A |
| Power Consumption（W） |
5 W |
| Temperature |
Storage Temerature :-20 ~ 75℃;Operating Temperature :0~65℃ |

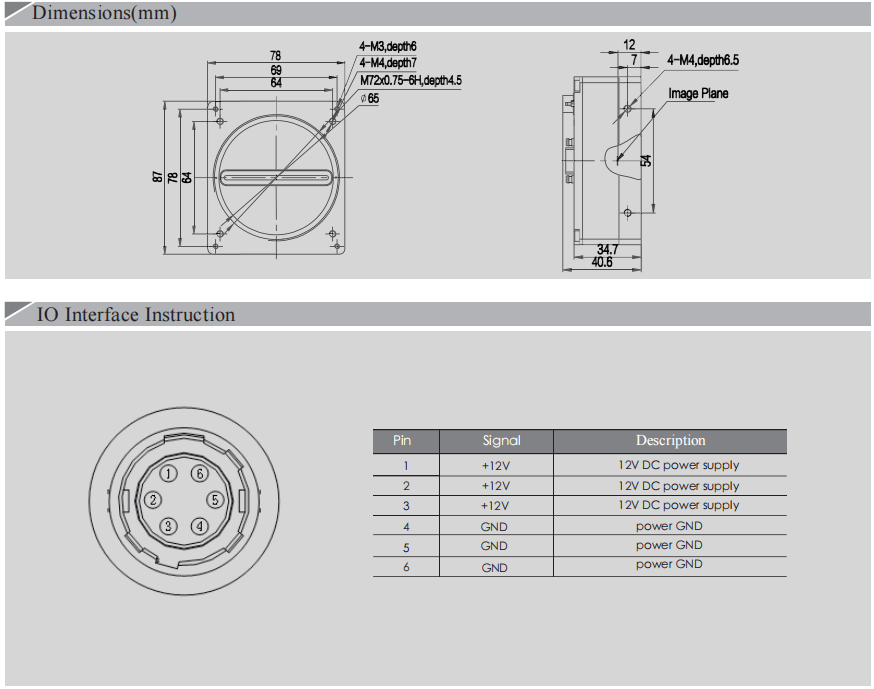

| Dimensions |
78.0mm(W) x 87.0mm(H) x 40.6mm(D) |
| Mono/Color |
M |
