Camera & Optics

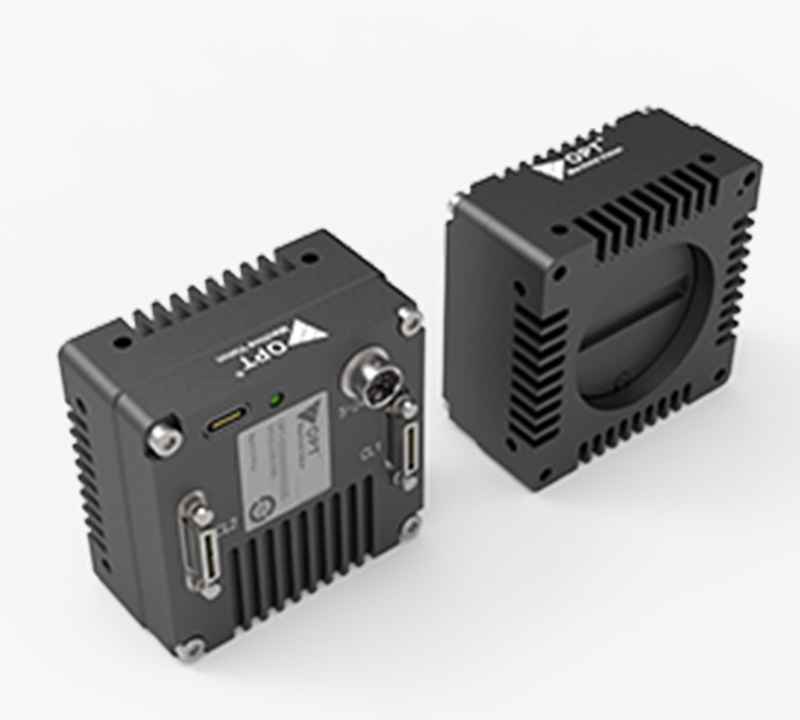

Industrial Line Scan Cameras OPT-CLM204-L200-17
- Line Rate up to 200KHz.
- High sensitivity and Low noise.
- FFC/ROI/LUT/Bining.
- Flexible and simple GUI configuration toll.
- Internal trigger,external trigger,optional.
- Temperature monitor.
- Power supply:DC 12V(± 10%).
Features
| Model |
OPT-CLM204-L200-17 |
| Resolution |
4096 × 2 |
| Pixel Size(μ㎡) |
7*7 |
| Sensor Type |
Line |
| Sensor |
CMOS |
| Line Frequency（KHz） |
200 |
| Interface |
Camera Link (SDR) |
| Lens Mount |
M42*1 |
| Exposure Time |
2μs - 10s |
| Gain(dB) |
1/2/5/10x（analogue gain）0.004x-8.00x（digital gain） |
| Dynamic Range(dB) |
66.2dB |
| Power Supply |
Hirose HR10A (6-pin) DC 12V(±10%) 3A |
| Power Consumption（W） |
5.7 W |
| Temperature |
Storage Temerature :-20~75℃;Operating Temperature :0~65℃ |

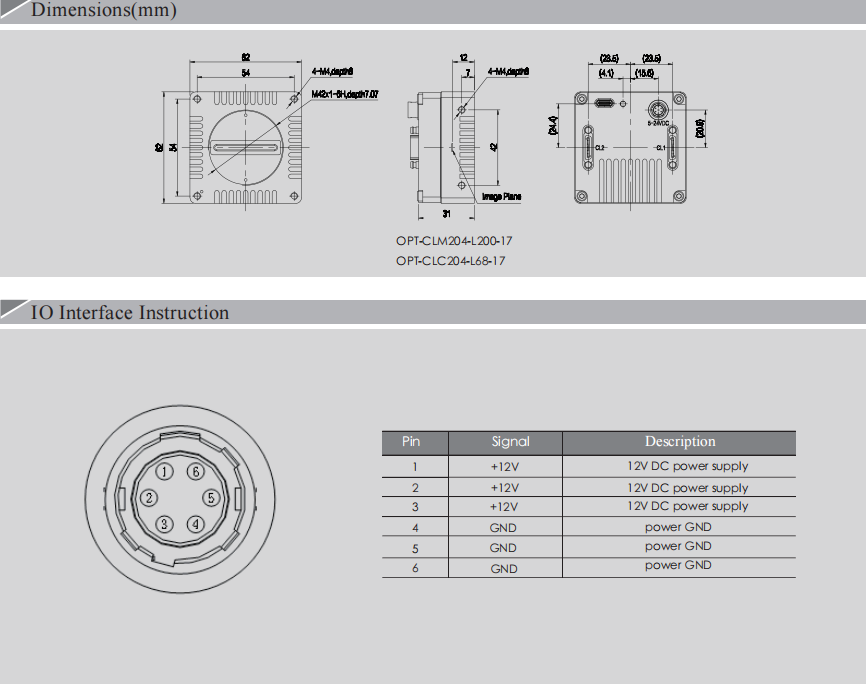

| Dimensions |
62.0mm(W) x 62.0mm(H) x 31.0mm(D) |
| Mono/Color |
M |
