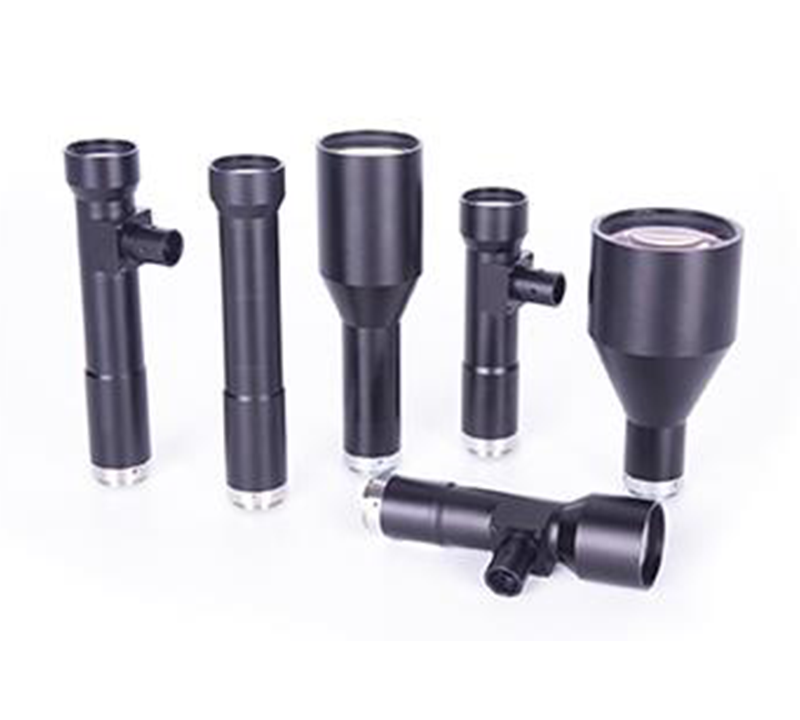

Industrial MH Series Telecentric Lenses OPT-MH08-65
- High-definition large-aperture telecentric lens, compatible with up to 2/3" sensor chip size camera.
- The magnification range of the whole series is wide, multiple magnifications are available from 0.5X to 7.5X.
- Object-oriented telecentric design, with built-in coaxial light illumination specifications optional.
Specifications
Size
Applications
| Model | OPT-MH08-65 |
|---|---|
| Working Distance(mm) | 65±1 |
| Aperture(F/#) | 10.0 |
| Magnification（X） | 0.8 |
| Image Circle Ø(mm) | 11 |
| Sensor Format | 2/3″ |
| MTF30(lp/mm) | 100 |
| Distortion(%Max) | <0.086% |
| Depth Of Field(mm) | 1.29 |
| Telecentricity | 0.08° |
| Object To Image Distance(mm) | 180.8 |
| Mount | C-Mount |
| Weight(kg) | 0.20 |
| Field Of View∅(mm) | 13.80 |
