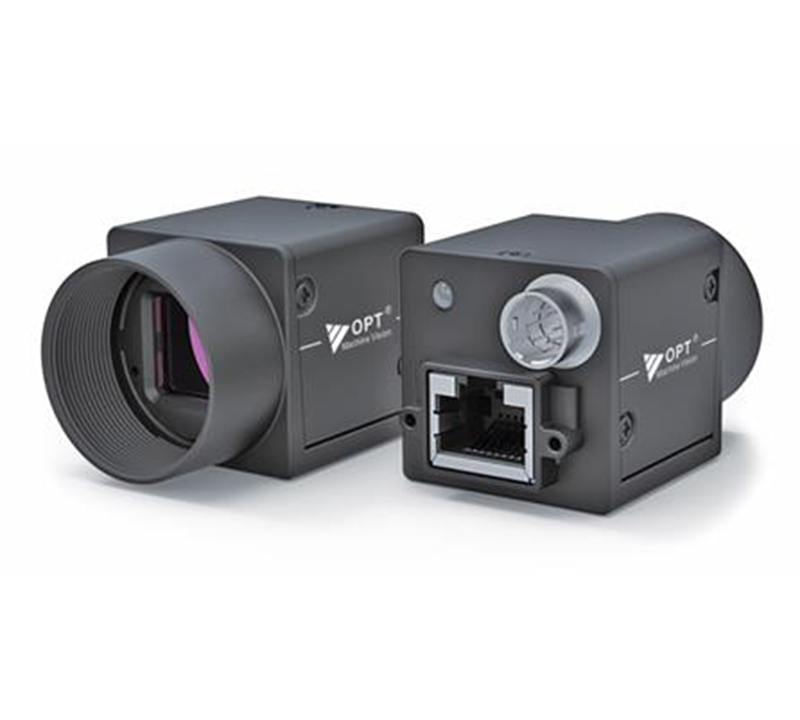

Industrial Rolling Shutter Cameras OPT-CC1-C050-GR0-04
- Adopts low power consumption design with stable performance.
- Supports auto and manual adjustment of gain, exposure time, etc.
- Supports hardware trigger, software trigger, free run, etc.
- Adopts GigE interface and max. transmission distance of 100 meters without relay.
- Compatible with GigE Vision V2.0 Protocol, GenlCam Standard, and third-party software based on the protocol and standard.
| Model |
OPT-CC1-C050-GR0-04 |
| Resolution |
2592x1944 |
| Pixel Size(μ㎡) |
2.2 x 2.2 |
| Sensor Type |
CMOS Rolling |
| Shutter |
Rolling |
| Frame Rate(FPS) |
24 |
| Sensor Format |
1/2.5” |
| Interface |
GigE PoE |
| Lens Mount |
C |
| Exposure Time |
21 μs to 1 sec |
| Image Format |
Bayer GR 8/10/10Packed/12/12Packed |
| Gain(dB) |
0 dB ~ 15 dB |
| Dynamic Range(dB) |
63 dB |
| Power Supply |
9 VDC to 24 VDC, supports PoE |
| Weight |
Approx. 100 g (0.2 lb.) |
| Power Consumption（W） |
Typ. 1.81 W@12 VDC |
| Temperature |
Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F) |
| GPIO |
6-pin connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2) |

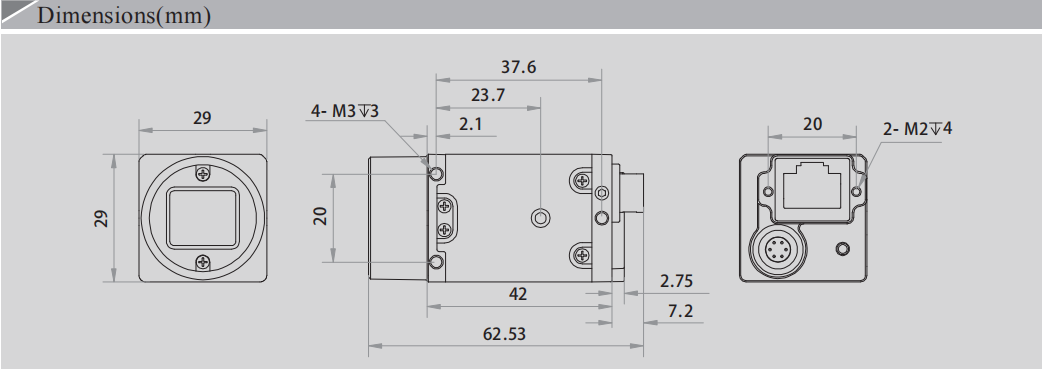

| Dimensions |
29 mm × 29 mm × 42 mm (1.1" × 1.1" × 1.7") |
| Mono/Color |
C |
