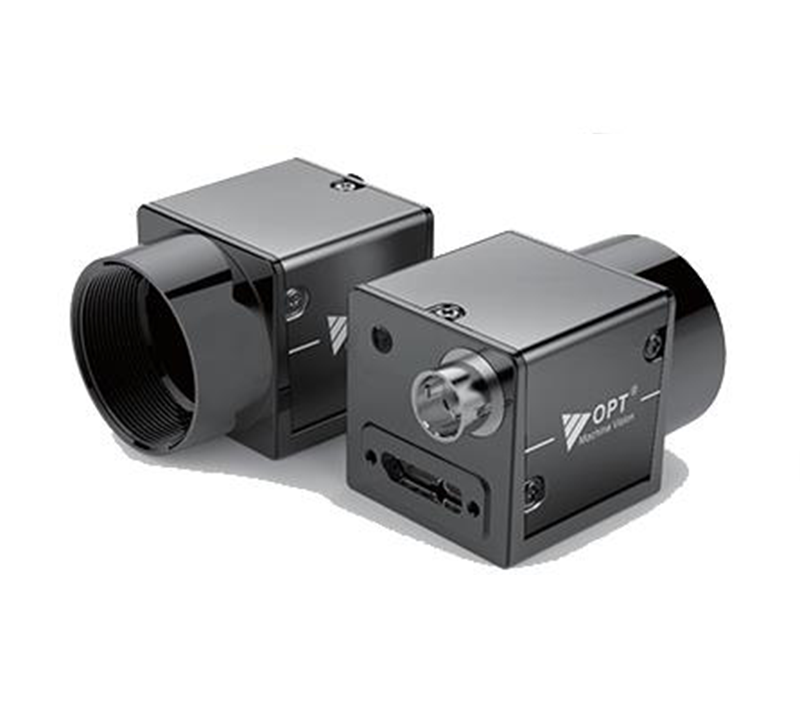

Industrial Rolling Shutter Cameras OPT-CC1-M050-UR5-02
- Adopts brand new design to reduce power consumption.
- Supports increasing frame rate via ROI, and supports binning, horizontal and vertical reverse image output.
- Supports hardware trigger, software trigger, and free run.
- Compatible with USB3 Vision Protocol, GenlCam Standard, and the third-party software based on the protocol and standard.
| Model |
OPT-CC1-M050-UR5-02 |
| Resolution |
2592x1944 |
| Pixel Size(μ㎡) |
2.2 x 2.2 |
| Sensor Type |
CMOS Rolling |
| Shutter |
Rolling |
| Frame Rate(FPS) |
48.2 |
| Sensor Format |
1/2.5” |
| Interface |
USB3.0 |
| Lens Mount |
C |
| Exposure Time |
12 μs ~ 1.25 sec |
| Image Format |
Mono 8/10/10Packed/12/12Packed |
| Gain(dB) |
0 dB ~ 24 dB |
| Dynamic Range(dB) |
65.4 dB |
| Power Supply |
9 VDC to 24 VDC, supports USB3.0 power supply |
| Weight |
Approx. 76 g (0.2 lb.) |
| Power Consumption（W） |
Typ. 2.7 W@5 VDC (USB3.0 provides power supply) |
| Temperature |
Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F) |
| GPIO |
6-pin connector provides power and I/O, including opto-isolated input × 1 (Line 0), optoisolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2). |

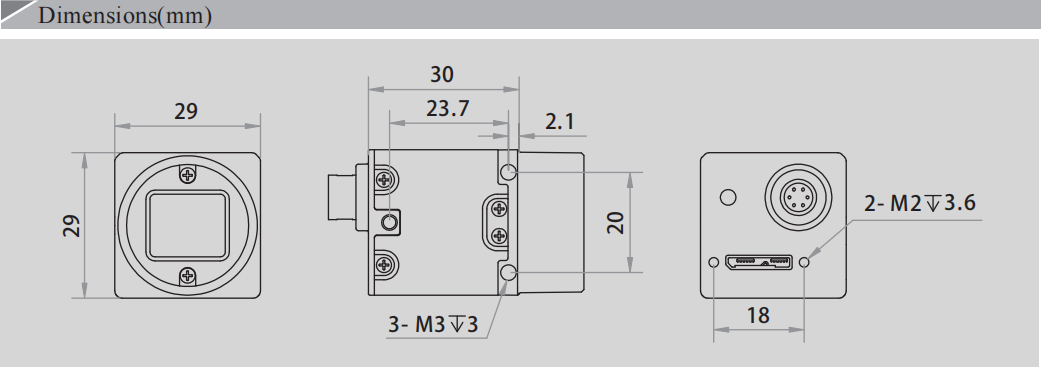

| Dimensions |
29 mm × 29 mm × 30 mm (1.1" × 1.1" × 1.2") |
| Mono/Color |
M |
