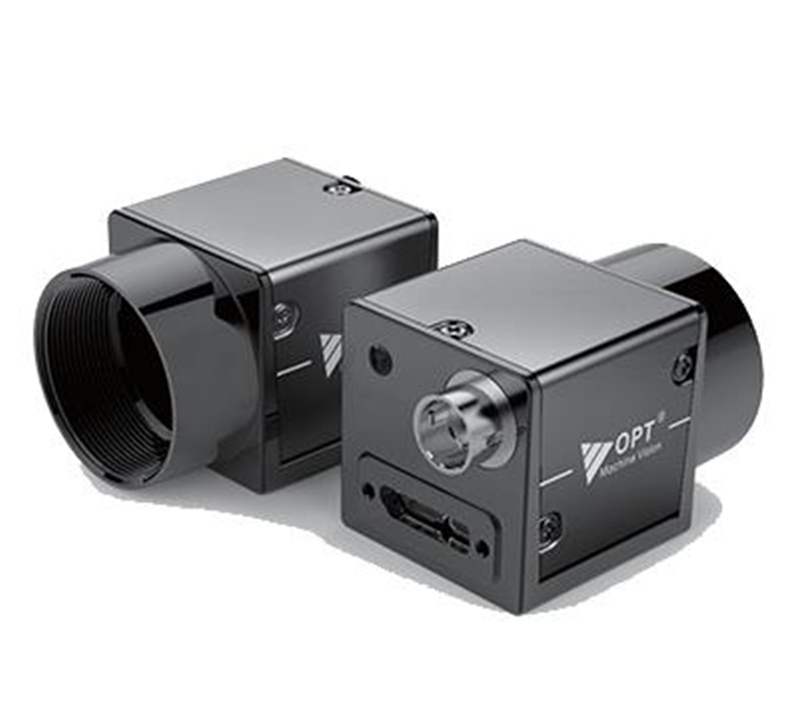

Industrial Rolling Shutter Cameras OPT-CC1-M060-UR1-02

Adopts brand new design to reduce power consumption.
Compact design with mounting holes on panels for flexible mounting from 4 sides.
Adopts Sony
Supports image compression mode and noise reduction function.
Adopts active alignment techniques for assembling.Compatible with USB3 Vision Protocol, GenlCam Standard, and the third-party software based on the protocol and standard.

add to cart Inquiry Now

Model	OPT-CC1-M060-UR1-02
Resolution	3072x2048
Pixel Size(μ㎡)	2.4 x 2.4
Sensor Type	CMOS Rolling
Shutter	Rolling
Sensor	IMX178
Frame Rate(FPS)	59.6
Sensor Format	1/1.8”
Interface	USB3.0
Lens Mount	C
Exposure Time	32 μs to 1 sec
Image Format	Mono 8/10/10p/12/12p
Gain(dB)	0 dB to 24 dB
Dynamic Range(dB)	71.3 dB
Power Supply	9 VDC to 24 VDC, supports USB3.0 power supply
Weight	Approx. 80 g (0.18 lb.)
Power Consumption（W）	Typ. 2.3 W@5 VDC(USB3.0 provides power supply)
Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
GPIO	6-pin Hirose connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).

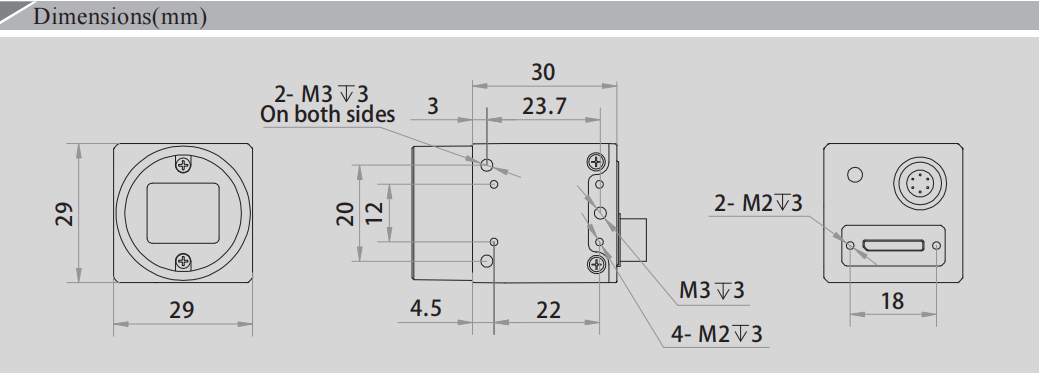

Dimensions	29 mm × 29 mm × 30 mm (1.1" × 1.1" × 1.2")
Mono/Color	M
