Industrial Rolling Shutter Cameras OPT-CC200-UL-04
- USB3.0 interface, 5Gbps theoretical transfer bandwidth,power supply via USB interface.
- Compact size of 29mmx29mmx29mm.
- Support Software Trigger/Hardware Trigger/Free Run Mode.
- Support ISP functions including Sharpness/Denoising/Gamma/LUT/BlackLevel Correction/TargetBrightness/Contrast etc.
- Color cameras support interpolation, white balance, color conversion matrix, chroma, saturation, etc.
| Model |
OPT-CC200-UL-04 |
| Resolution |
1920×1080 |
| Pixel Size(μ㎡) |
2.9x2.9 |
| Sensor Type |
CMOS Rolling |
| Shutter |
Rolling |
| Sensor |
IMX290 |
| Frame Rate(FPS) |
120 |
| Sensor Format |
1/2.8" |
| Interface |
USB3.0 |
| Lens Mount |
C-Mount |
| Exposure Time |
8μs~1s |
| Image Format |
BayerRG8/10/10Packed, BayerGB8/10/10Packed |
| Gain(dB) |
X1~X32 |
| Dynamic Range(dB) |
66dB |
| Power Supply |
power supply via USB interface/ DC 9V~24V power supply via Hirose interface |
| Weight |
68g |
| Power Consumption（W） |
≈2.8W |
| Temperature |
Storage temperature:-30℃~ + 80℃; Operation temperature: 0℃~+50℃ |
| GPIO |
6 pin Hirose: 1 Opto-isolated input, 1 Opto-isolated output, 1 configurable input/output without opto isolation |

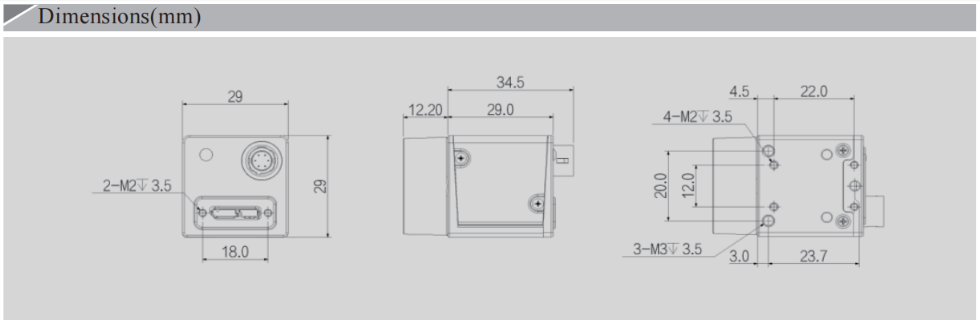

| Dimensions |
29mm×29mm×29mm |
| Conformity |
Compatible with USB3 Vision protocol and GenICam standard |
| Mono/Color |
C |
