Camera & Optics
Industrial Rolling Shutter Cameras OPT-CM600-GL-0402
- Gigabit Ethernet interface, providing 1Gbps bandwidth with a maximum transmission distance of 100m.
- Support Software Trigger/Hardware Trigger/Free Run Mode.
- Support ISP functions including Sharpness/Denoising/Gamma/LUT/BlackLevel Correction/TargetBrightness/Contrast etc.
- Support POE power supply,DC9-24V wide voltage power supply.
- Compliance with CE,FCC,RoHS certifification.
| Model |
OPT-CM600-GL-0402 |
| Resolution |
3072x2048 |
| Pixel Size(μ㎡) |
2.4 x 2.4 |
| Sensor Type |
CMOS Rolling |
| Shutter |
Rolling |
| Sensor |
IMX178 |
| Frame Rate(FPS) |
18 |
| Sensor Format |
1/1.8" |
| Interface |
GigE PoE |
| Lens Mount |
C-Mount |
| Exposure Time |
25μs~1s |
| Image Format |
Mono8/10/10packed/12/12Packed |
| Gain(dB) |
X1~X32 |
| Dynamic Range(dB) |
66dB |
| Power Supply |
DC 9V~24V power supply via Hirose interface |
| Weight |
60g |
| Power Consumption（W） |
12V≈3.4W |
| Temperature |
Storage temperature：-30℃~ + 80℃; Operation temperature： 0℃~+50℃ |

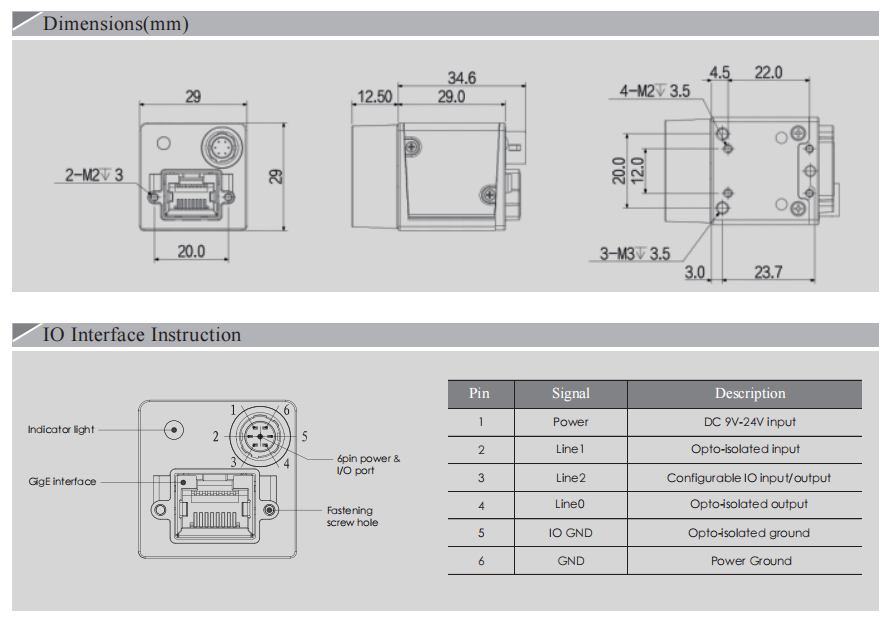

| GPIO |
6 pin Hirose: 1 Opto-isolated input, 1 Opto-isolated output, 1 configurable input/output without opto isolation |
| Dimensions |
29mm×29mm×29mm |
| Conformity |
Conform to GigE Vision V2.0 protocol and GenICam standard; |
| Mono/Color |
M |
