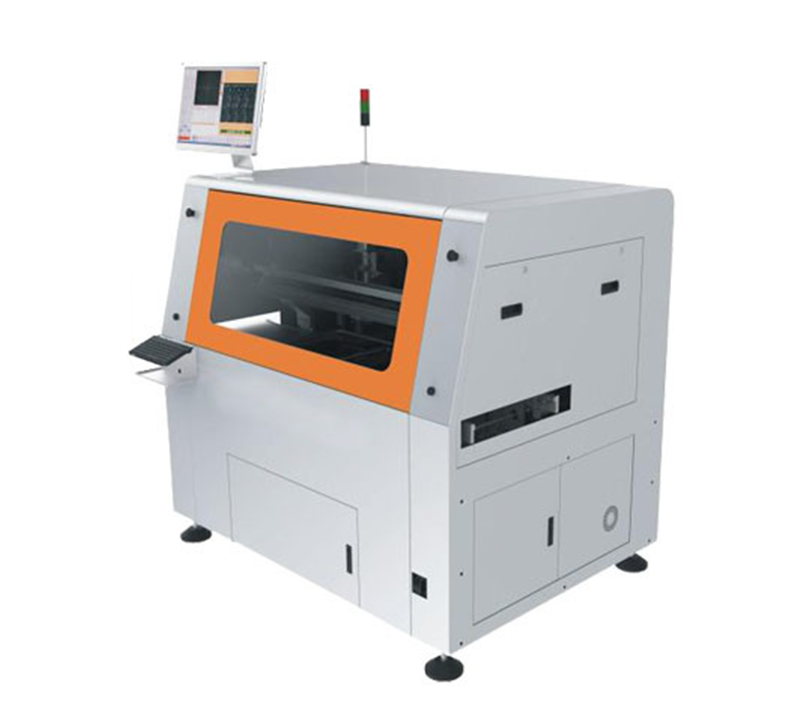

Inline PCB Router Depaneling Machine, PCB Separator, PCB Routing Cutter
- Product Name: PCB Router Machine
- Spindle Speed: 60000R/M
- Power: 2.6KW 220V
- Work Area: 330*560 Mm
- Machine Size: 1350*1250*1450 mm
- Operation System: Windows 7
- Featuest:
- 2.6KW PCB Router Machine
- 100mm/S PCB Router Machine
- 60000RPM Printed Circuit Board Router
Features
Specification
- Passed CE international certification, ergonomic operation;
- Platform servo drive entry makes it accurate and fast
- The automatic deviation correction by visual intelligent positioning
- Broken blade detection, Real-time monitoring of milling cutter
- Safe door sensor, open Automatic alarm stops when door opens
- The machine runs at high speed, stable without shaking
Specification
|
Motor drive system |
Servo / stepper motor |
|
Spindle speed |
60000RPM |
|
Spindle brand |
Germany KAVO |
|
Drive system repeatability |
±0.02mm |
|
Max cutting speed |
100 mm/s |
|
Resolution |
±0.01mm |
|
PCB positioning |
fixture |
|
Power |
2.6KW 220V |
|
PCB thickness |
0.4mm-4mm |
|
Vacuum cleaner |
2.2KW/380V |
|
Motor power |
0.5KW |
|
Motor speed |
3000RPM |
|
Spindle motor cooling |
Air-cooled |
|
Machine dimension |
1350*1300*1450mm |
|
Machine weight |
850Kgs |
|
Vacuun Cleaner |
Yes |
