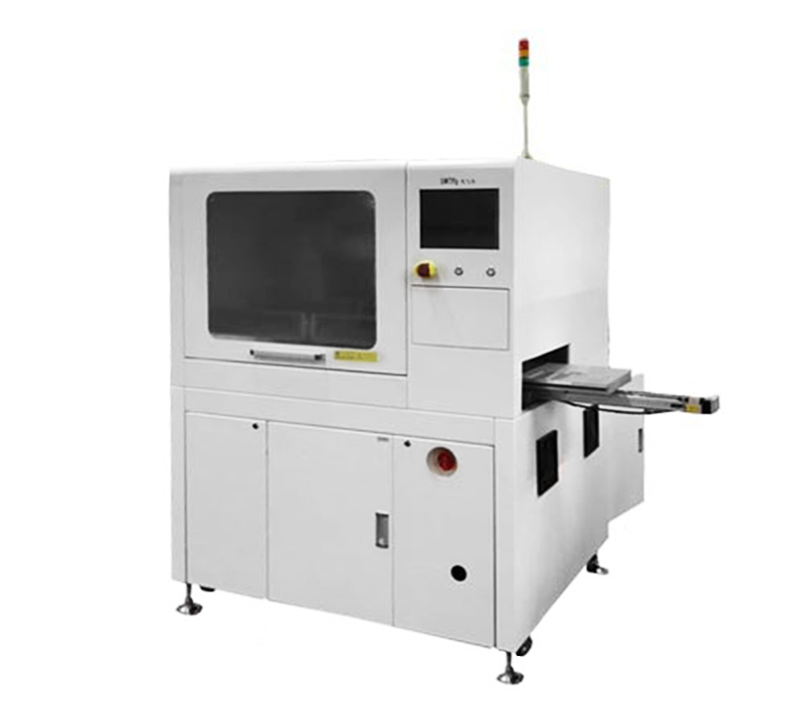

Inline PCB Router Depaneling Spearator
- Product Name: PCB Router
- Spindle Speed: 60000R/M
- Fixture: Customized
- Work Area: 330*560 Mm
- Machine Size: 1350*1250*1450 Mm
- Working Pressure: 4-6 Mpa
- Advantages:
- 2.6KW PCB Router
- Motor Driven PCB Router
- 4Mpa Printed Circuit Board Router
Features
Specificatio
- Broken blade detection, Real-time monitoring of milling cutter
- Security door sensor, automatic alarm stops when door is opened
- The machine runs at high speed, stable without shaking
- Repeatable accuracy ±.01mm;
- MAX work area of 650mm x 450mm;
- Up to 100 programs or 6000 work points can be stored on the router's memory card.
- Floor cabling systems can be used for series applications
Specificatio
|
Motor drive system |
Servo / stepper motor |
|
Spindle speed |
40000RPM |
|
Cutting size |
390*660 390*330 mm |
|
Drive system repeatability |
±0.02mm |
|
Max cutting speed |
100 mm/s |
|
Resolution |
±0.01mm |
|
PCB positioning |
fixture |
|
Power |
2.6KW 220V |
|
PCB thickness |
0.4mm-4mm |
|
Vacuum cleaner |
2.2KW/380V |
|
Motor power |
0.5KW |
|
Motor speed |
3000RPM |
|
Spindle motor cooling |
Air-cooled |
|
Machine dimension |
950*800*750mm |
|
Machine weight |
92KG |
|
Vacuun Cleaner |
Yes |
