| Capacity (L) |
Model |

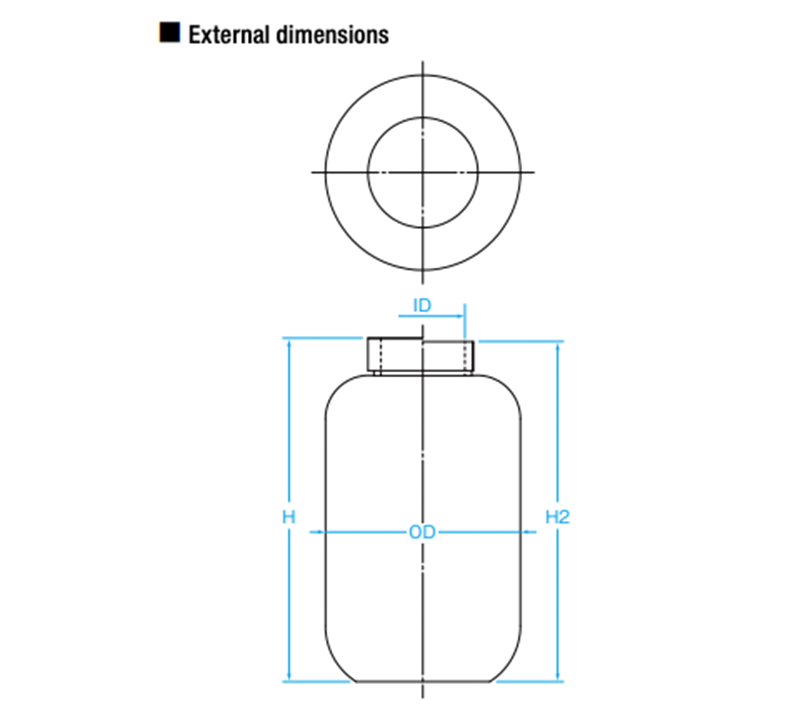

External dimensions (mm) |
Material |
| With outer lid H |
Without outer lid H2 |
Outside diameter of body OD |
Inside diameter of opening ID |
| 0.5 |
SBP-0.5 L-01 |
151 |
146 |
φ78 |
φ43.5 |
Lid: HDPE Internal lid: LDPE Container: HDPE |
| 1 |
SBP-1 L-01 |
187.5 |
184 |
φ101 |
φ43.6 |
| 2 |
SBP-2 L-01 |
240 |
234.5 |
φ126 |
φ75 |
| 3 |
SBP-3 L-01 |
271 |
267.5 |
φ142.5 |
φ74.5 |
| 5 |
SBP-5 L-01 |
303 |
300 |
φ172 |
φ74 |
| 10 |
SBP-10 L-01 |
398 |
383.5 |
φ217 |
φ96.6 |
| 20 |
SBP-20 L-01 |
420 |
415 |
φ304 |
φ96 |
Note: The internal container must be inserted inside a safety lock tank or straight one-touch tank series before using.
