Press Fit

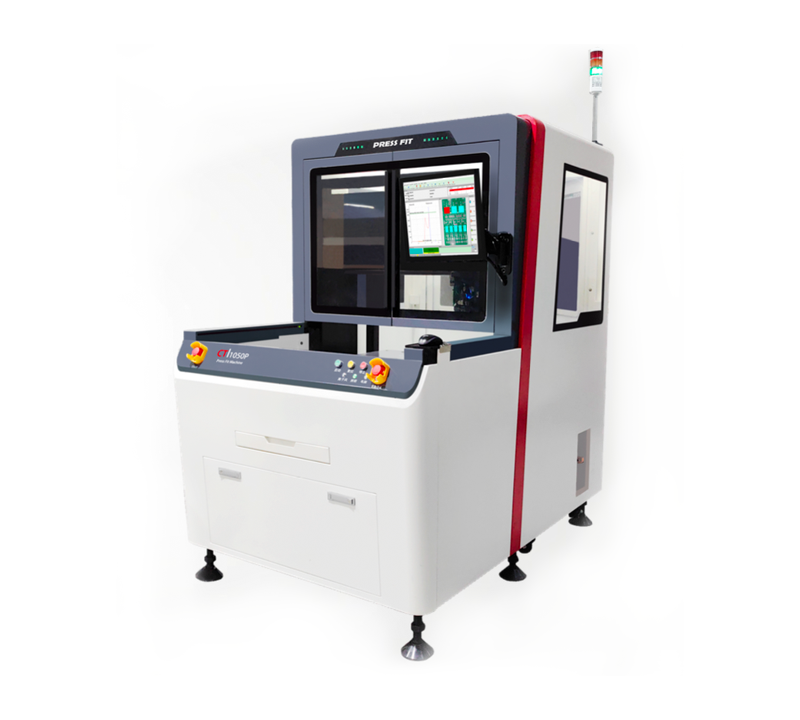

Introduction for Offline Automatic Press-fit Equipment CT-1050L
- H structure is more stable and stronger.
- XYZ servo control accuracy ±0.01mm
- Z axis four guide column structure
- Large size head 220X150mm;
- The sensor and indenter use the closed-structure, the pressure detection accuracy is higher;
- Double-layer working platform;
- shaped support at the bottom of the platform
Main structure
Worktable
Bottom tool
Machine parameters
| Model | CT-1050L | CT-1050P |
|---|---|---|
| Max. Force | 30000N | 50000N |
| Operating system | Win 10 PC | |
| Press-fit stroke & space | stroke: 100 mm space: 150 mm | |
| Z-axis speed | 0.01-30 mm/s | |
| X/Y/Z-axis movement | X/Y/Z servo motor + high precision ball screw + guide rail | |
| Accuracy of position | ±0.01mm, CPK>1.67 | |
| Accuracy of pressure | Fulfill ±1% in full scale, 5% target value, CPK>1.67, pressure resolution: 1N | |
| Horizontal leveling accuracy | ±0.1 mm (pressing block and worktable) | |
| PCBA thickness range | 0.5-8.0 mm | |
| Upper tool size | 220*160 mm | |
| Max. weight PCBA | 30 kg | |
| Working height | 900±30 mm | |
| Vision function | Barcode, PCB Mark, Tooling positioning system, 2D Concentricity detection(option), laser height detection(option), 3DPIN height detection(option) |
|
| Size of worktable & thickness | 750*520 mm & 60mm | 750*750 mm & 70mm |
| Safety protection devices | Light curtain & safety doors | |
| Machine size &power | 1550L *1100W *1850H mm AC220V 2.2KW | 1940L *1300W *1950H mm AC220V 4.2KW |
| Weight | 1700 kg | 2600 kg |
