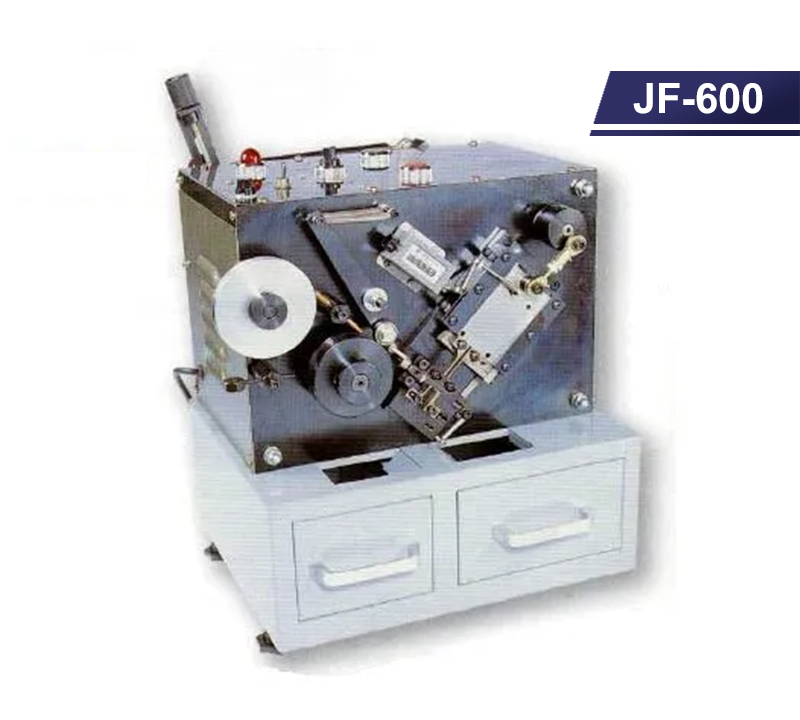

Jumper Wire Forming Machine

• Special feeding system prevents damaging the wire. Easy adjustment and maintenance.
• Compact, light, energy-saving and economy.
• Using the Tungsten Carbide Tool to assure durability.
• Automatic feeding system is unmanned after accurate adjustment.
• The Lead length (H) is fixed. Kindly specify in the order.
• Easy to adjust the Lead Width (L) from 5-42mm without mold change.

Please indicate below on the order :
The Lead length (H) is fixed. Kindly specify in the order.
If the Lead width (L) is 2.5-42mm, kindly specify in the order.
If the wire diameter is thicker than 0.8mm, please, specify in the order.


	Model	JF-600	JF-600W
	Type	Standard	Heavy-Duty
H	Lead Length	Fixed at certain spec.	Fixed at certain spec.
L	Lead Width	5-42 mm	Fixed at certain spec.
W	Wire Diameter	Ø 0.6 - 0.7 mm	Ø 1.0 -1.2 mm
