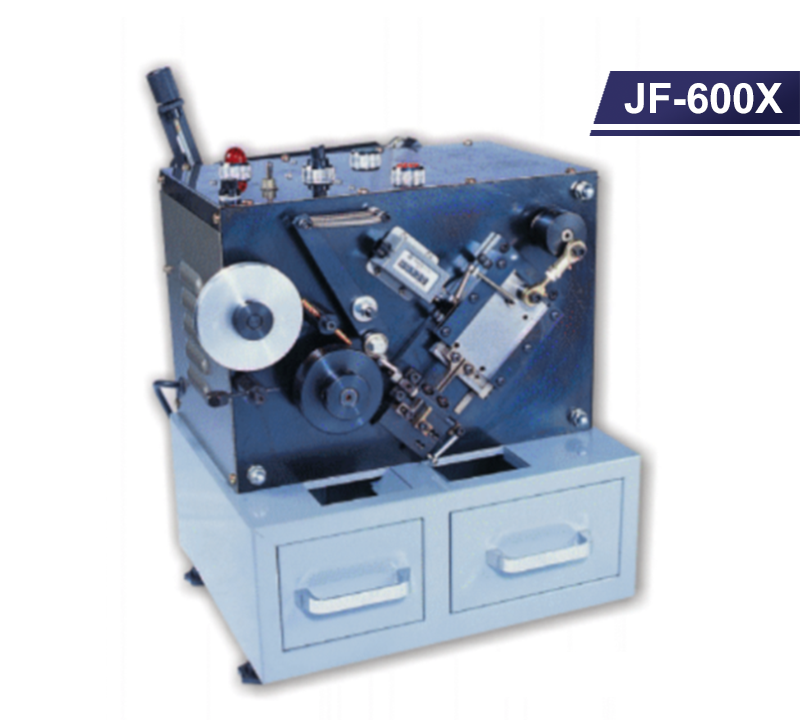

Jumper Wire Forming Machine
Power: 110V/60Hz ; 220V/50Hz
Dimension: 440(L) x 440(W) x 570(H) mm
Net Weight: 37 kgs
Capacity: 7,500pcs/Hour
Dimension: 440(L) x 440(W) x 570(H) mm
Net Weight: 37 kgs
Capacity: 7,500pcs/Hour
- Easy adjustment and maintenance. Special feeding system prevents damaging the wire.
- Compact, light, low energy consumption, quick return.
- The Tungsten Carbide Forming Tool ensures durability.
- Automatic feeding system is unmanned after the accurate adjustment.

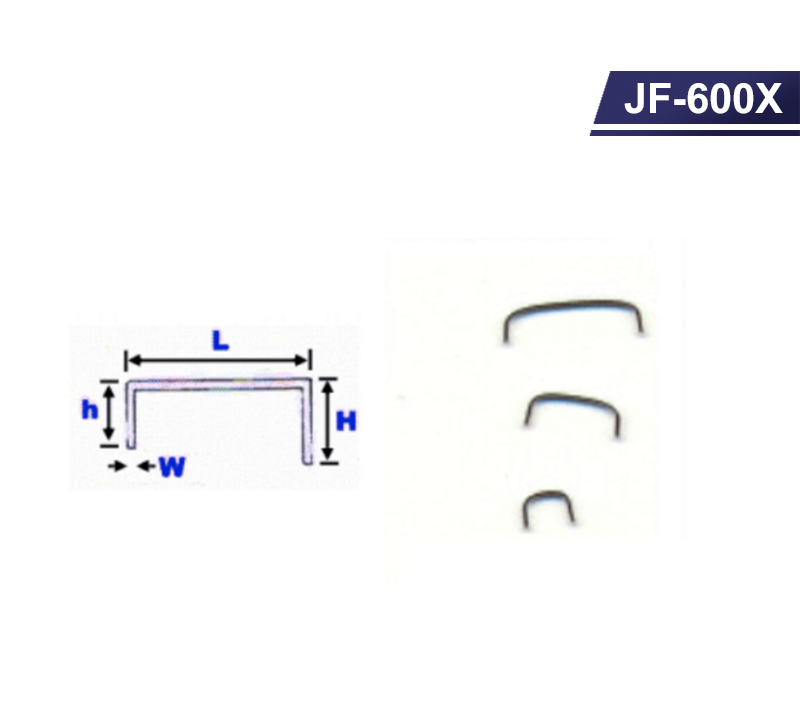

- The lead length (h/H) and lead width (L) are adjustable.
- The R angle of the JF-600X is wider than the JF-600 and JF-760.
| Model | JF-600X | |
| h | Lead Length | 3 - 12 mm |
| H | Lead Length | 3 -8 mm |
| L | Lead Width | 5 -35 mm |
| W | Wire Diameter | Ø 0.6 - 0.7 mm |
