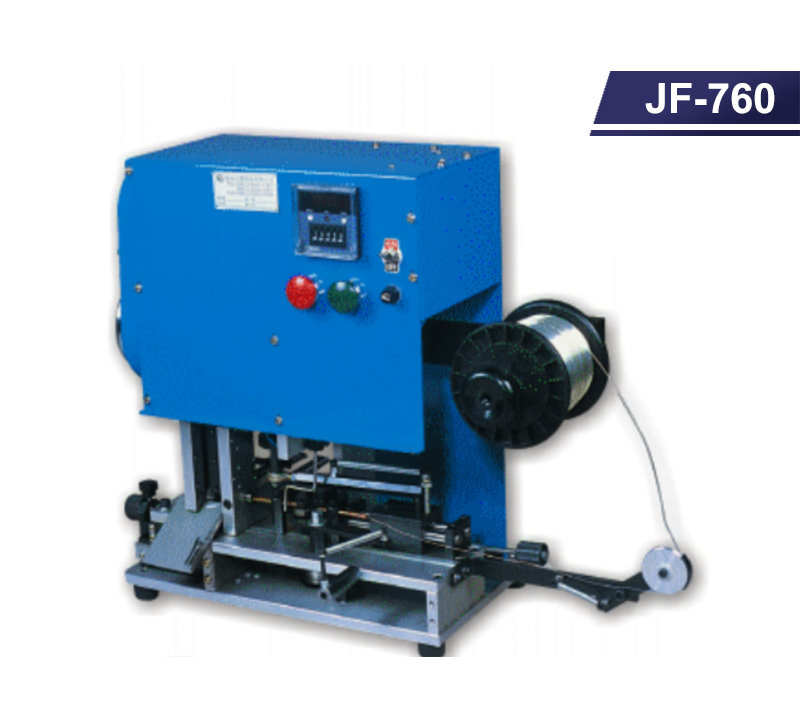

Jumper Wire Forming Machine

• Easy adjustment and maintenance. Special feeding system prevents damaging the wire.
• Compact, light, energy-saving and economy.
• The Tungsten Carbide Tool ensures durability.
• Automatic feeding system is unmanned after accurate adjustment.
• Equipped as standard: Emergency stop device ㆍ Quantity pre-set device ㆍ LED display for Counter
• No waste of material, one single lead (h) is adjustable. The max. total wire length is 46mm (h+L+H).

Please indicate on the order :
1. The Lead length (H) is fixed. Kindly specify in the order.
2. If the wire diameter is thicker than 0.8mm, please, specify in the order.

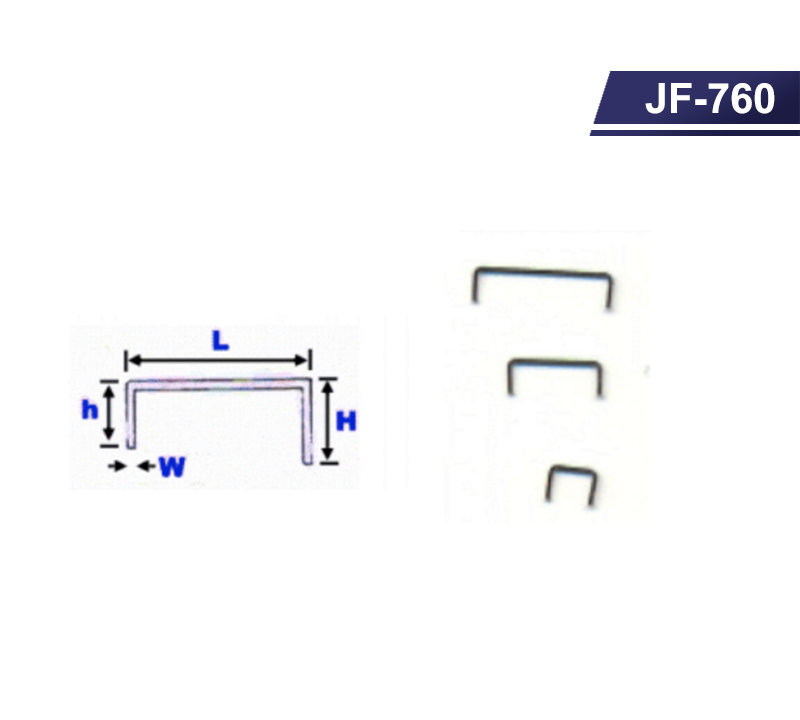

	Model	JF-760
h	Lead Length	3 - 12 mm
H	Lead Length	3 -8 mm
L	Lead Width	5 -35 mm
W	Wire Diameter	Ø 0.6 - 0.7 mm
