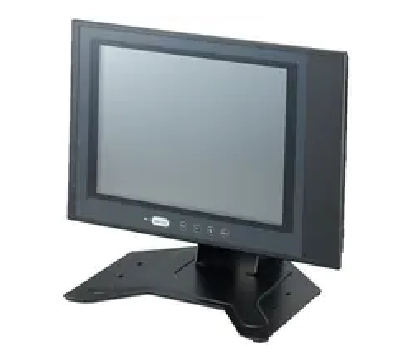

12-inch LCD Color Monitor (Analog XGA)

Model

CA-MP120^*1

Display panel

No. of dots

1,024 (W) x 768 (H) dots or 800 (W) x 600 (H) dots

Active display area

245 (W) x 184 (H) mm 9.65 " (W) x 7.24 " (H)

Structure

Panel-mount type Front face is IP65 rated when panel mounted

Backlight

Duration

Approx 100,000 hours (When installed in an upright position under 25 °C 77 °F)

Input/Output

Input signal

Analog RGB signal (0.7 Vp-p, 75 Ω) , Horizontal/vertical synchronization signal

Input signal mode

1,024 (W) x 768 (H) , Vertical frequency: 60 Hz or
800 (W) x 600 (H) , Vertical frequency: 60 Hz

Connector

High-density D-sub 15-pin female (3-way, inch screw)

Touch panel connector

-

Console connector

Rating

Power voltage

24 VDC ±10 %

Current consumption

1 A max.

Environmental resistance

Ambient temperature

0 to +40 °C 32 to 104 °F

Relative humidity

35 to 85 % RH

Weight

Approx. 2.3 kg
