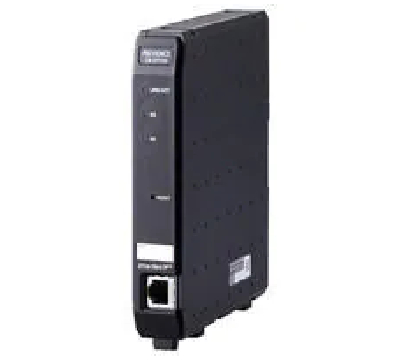

EtherNet/IP™ Unit

Model

CB-EP100

Type

EtherNet/IP^TM unit

Compatible network

EtherNet/IP^TM and displacement sensor-specific protocols (socket communication)

Ethernet

Compliant standards

IEEE 802.3 (10BASE-T), IEEE 802.3u (100BASE-TX)

Transmission speed

10 Mbps (10BASE-T), 100 Mbps (100BASE-TX)

Transmission media

STP or Category 3 or higher UTP (10BASE-T),
STP or Category 5 or higher UTP (100BASE-TX)

Maximum cable length

100 m 328.1' (Distance between the unit and Ethernet switch)

EtherNet

Maximum number of connectable hubs

4 hubs (10BASE-T), 2 hubs (100BASE-TX)^*1

EtherNet/IP^TM

Supported functions

Cyclic communication (Implicit messaging),
Message communication (Explicit messaging),
Compatible with UCMM and Class 3

Number of connections

64

RPI

0.5 ms to 10,000 ms (in 0.5 ms)

Tolerable communication bandwidth for cyclic communication

6,000 pps

Message communication

UCMM, Class 3

Conformance test

Compatible with Version A9

Rating

Power voltage

24 VDC ±10 %, including Ripple (P-P)
(supplied from the controller unit of the laser scanner)

Current consumption

0.12 A or less

Environmental resistance

Ambient temperature

0 to +50 °C 32 to 122 °F

Relative humidity

20 to 85 % RH (No condensation)

Weight

Approx. 470 g
