Controller

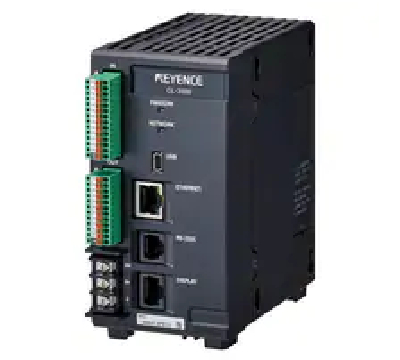

Model No.：Keyence CL-3000

add to cart Inquiry Now

Specifications

Model		CL-3000
Type		Controller
Number of optical unit connections		Controller only: 2 units; using expansion units / relay units: 6 units
Interface	EtherNet/IP^TM	Supports cyclic communication and message communication; RPI: 1 to 10,000 ms (0.5 ms units) Maximum number of connections: 8, complies with Version CT14 conformance test Cannot be used when using PROFINET, PLC link or EtherCAT
	PROFINET	Compatible with conformance class A. Cannot be used when using EtherNet/IP, PLC link or EtherCAT
	PLC-Link	The following PLCs are supported: Mitsubishi Electric: MELSEC iQ-R Series, iQ-F Series, Q Series, L Series, FX Series Cannot be used when using EtherNet/IP, PROFINET or EtherCAT
	Ethernet	Allows for measurement data output and control I/O via no-protocol command communication with PCs and PLCs 100Base-TX, capable of communication with CL-NavigatorN^*1
	USB	Conforms to USB 2.0 HighSpeed, capable of communication with CL-NavigatorN^*1
	RS-232C	Allows for measurement data output and control I/O via no-protocol command communication with PCs and PLCs Baud rate: 9600 to 115,200 bps, data length: 8 bit, stop bit: 1 bit, parity: none / even numbers / odd numbers
	Terminal (IN)	13 (supports function switching via software)
	Terminal (OUT)	11 ^*2(supports function switching via software)
Ratings	Power voltage	24 VDC ±10%
	Maximum current consumption	With 1 optical unit connected: 0.86 A, with 4 optical units connected: 3.3 A, with 6 optical units connected: 4.5 A
Environmental resistance	Ambient temperature	0 to 50°C 32 to 122°F
	Relative humidity	20% RH to 85% RH (no condensation)
	Vibration resistance	10 to 57 Hz, double amplitude 0.3 mm 0.01"; 2 hours each for X, Y, and Z axes
Monitor／Setting support software		CL-NavigatorN
Weight		Approx. 600 g
CL-NavigatorN OS environment	Supported OS	Windows^Ⓡ 10^3 / Windows^Ⓡ 7^4
	CPU	Celeron Dualcore 1.7 GHz or higher
	Memory capacity	4 GB or more
	Required free space on hard disk	1 GB or more
	Display resolution	XGA (1024 x 768 pixels) or higher
^1 Sample DLL and LabVIEW programs are available. Contact your local sales office for details. ^2 Positive common connection is supported for NPN input devices, and negative common connection for PNP input devices. ^3 Home, Pro and Enterprise Editions are supported. ^4 Home Premium, Professional and Ultimate Editions are supported. • Windows^Ⓡ and Excel are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.
