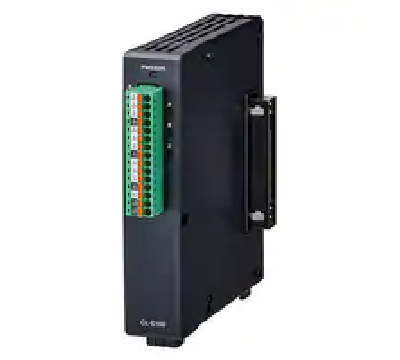

Encoder Unit

Model

CL-E100

Type

Encoder unit

Number of encoder axes

Incremental method (A/B/Z phase)

Minimum encoder input time

100 ns to 20 µs

Maximum current consumption

0.18 A

Service power supply

5 VDC ± 10%, maximum power supply 200 mA

Input terminal

Compatible with NPN/PNP open collector output (5 V/12 V/24 V). Compatible with line driver output

Environmental resistance

Ambient temperature

0 to 50°C 32 to 122°F

Relative humidity

20% RH to 85% RH (no condensation)

Weight

Approx. 300 g
