Sensor
|

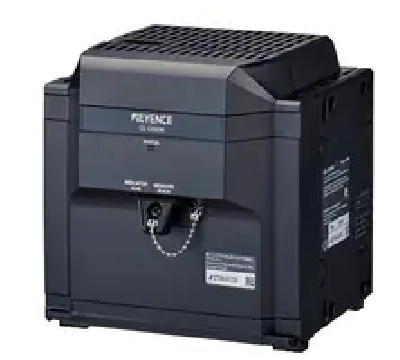

Model |
CL-P030N*1 |
|||
|
Type |
Optical unit |
|||
|
Head |
CL-P030 *1 |
|||
|
Reference distance |
30 mm 1.18" |
|||
|
Reference measurement range |
Measurement range |
± 3.7 mm ± 0.15" |
||
|
Linearity |
± 0.94 µm ± 0.000037"*2 |
|||
|
High precision measurement range |
Measurement range |
± 1.0 mm ± 0.04" |
||
|
Linearity |
± 0.72 µm ± 0.000028"*2 |
|||
|
Resolution |
0.25 µm 0.000010"*3 |
|||
|
Spot diameter |
ø 38 µm ø 0.0015" |
|||
|
Laser class |
Optical unit |
Class 1 |
||
|
Sampling cycle |
100/200/500/1000 µs (Adjustable 4-stage) |
|||
|
Environmental resistance |
Enclosure rating |
Head |
IP67 (IEC60529) |
|
|
Ambient light |
Target surface illuminance 30,000 lux (Incandescent lamp) |
|||
|
Ambient temperature |
0 to 50°C 32 to 122°F |
|||
|
Relative humidity |
20% RH to 85% RH (no condensation) |
|||
|
Vibration resistance |
Head |
10 to 57 Hz, double amplitude 1.5 mm 0.06"; 2 hours each for X, Y, and Z axes |
||
|
Optical unit |
10 to 57 Hz, double amplitude 0.3 mm 0.01"; 2 hours each for X, Y, and Z axes |
|||
|
Shock resistance |
15G 6 ms |
|||
|
Temperature characteristic |
Head |
0.005% of F.S. / °C |
||
|
Optical unit |
0.015% of F.S. / °C |
|||
|
Material |
Head |
Front: SUS Rear: Aluminum |
||
|
Optical unit |
Polycarbonate |
|||
|
Weight |
Head |
Approx. 200 g |
||
|
Optical unit |
Approx. 1600 g |
|||
|
*1 Sensor head and optical unit are a matched pair. Not cross compatible. |
||||
