Sensor
|
Model |

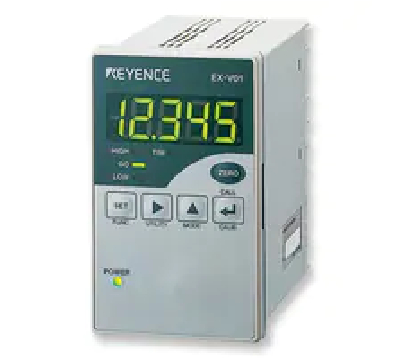

EX-V01E |
|||
|
Type |
Controller |
|||
|
Shape |
ø5.4 x 18 mm ø0.21" x 0.71" Cylindrical |
|||
|
Measuring range |
0 to 1 mm 0.04" |
|||
|
A/D converting system |
Sequential conversion |
|||
|
Display range |
-19,999 to +19,999 |
|||
|
Linearity |
±0.3% of F.S. |
|||
|
Resolution (No. of averaging |
0.4 µm 0.016 Mil |
|||
|
Sampling rate |
40,000 samplings max./sec. *1 |
|||
|
Display speed |
20 times/sec. (2-color, 7-segment LED) |
|||
|
Display power |
7-segment 2-color LED |
|||
|
Over-range alarm |
±FFFF is displayed. |
|||
|
Control input |
Timing input |
NPN open-collector or non-voltage contact signal |
||
|
Reset input |
||||
|
Auto-zero input |
||||
|
Judgment output: Inhibit input |
||||
|
Synchronization/external settings input |
||||
|
Control output |
Setting method |
Upper/lower 2-level setting x 4 patterns (selectable) |
||
|
Signal |
NPN open-collector (HIGH, GO and LOW): 100 mA max. (40 V max.) |
|||
|
Response time |
0.075 ms (at maximum speed) |
|||
|
OFF-delay time |
60 ms (ON/OFF selectable) |
|||
|
Strobe output |
NPN: 100 mA max. (40 V max.), Residual voltage: 1 V max. (N.O.) |
|||
|
Alarm output |
NPN: 100 mA max. (40 V max.), Residual voltage: 1 V max. (N.C.) |
|||
|
Analog output voltage |
Output voltage |
±0.5 V |
||
|
Impedance |
100 Ω |
|||
|
Response time |
0.075 ms (at maximum speed) |
|||
|
Temperature characteristics |
0.07% of F.S./°C *2 |
|||
|
Major functions |
FLL, digital filter, auto zero, offset, calculation, measurement mode (15 types), judgment value memory (4 sets), decimal point shift, display digit changing, display of various errors, etc. |
|||
|
Rating |
Power voltage |
24 VDC ±10 %, Ripple (P-P) 10 % or less |
||
|
Current consumption |
240 mA or less |
|||
|
Environmental resistance |
Ambient temperature |
0 to +50 °C 32 to 122 °F |
||
|
Relative humidity |
35 to 85 % RH (No condensation) |
|||
|
Vibration resistance |
10 to 55 Hz, Double amplitude 1.5 mm 0.06", 2 hours in each of the X, Y, and Z directions |
|||
|
Weight |
Approx. 235 g |
|||
|
*1 When the digital filter function is used, the sampling rate is 20,000 sampling/sec. |
||||
