Sensor
|
Model |
EX-V64P*1 |
|||
|
Type |

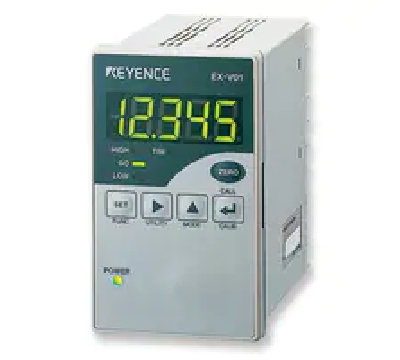

Amplifier Unit PNP |
|||
|
Shape |
14 x 30 x 4.8 mm 0.55" x 1.18" x 0.19" Thin profile |
|||
|
Measuring range |
0 to 4 mm 0.157" |
|||
|
Display range |
-19,999 to +19,999 |
|||
|
Linearity |
±0.3% of F.S. |
|||
|
Resolution (No. of averaging |
1 µm |
|||
|
Sampling rate |
40,000 samplings max./sec. *2 |
|||
|
Display speed |
20 times/sec. |
|||
|
Display power |
7-segment 2-color LED |
|||
|
Over-range alarm |
±FFFF is displayed. |
|||
|
Control input |
PNP: Applied voltage; 10 to 30 V |
|||
|
Control output |
Setting method |
Upper/lower 2-level setting x 4 patterns (selectable) |
||
|
Signal |
PNP open-collector (HIGH, GO and LOW): 100 mA max. (30 V max.) |
|||
|
Response time |
0.075 ms (at maximum speed) |
|||
|
OFF-delay time |
60 ms |
|||
|
Strobe output |
PNP: 100 mA max. (30 V max.), Residual voltage: 1 V max. (N.O.) |
|||
|
Alarm output |
PNP: 100 mA max. (30 V max.), Residual voltage: 1 V max. (N.C.) |
|||
|
Analog output voltage |
Output voltage |
±5V |
||
|
Impedance |
100 Ω |
|||
|
Response time |
0.075 ms (at maximum speed) |
|||
|
Temperature characteristics |
0.07% of F.S./°C *3 |
|||
|
Major functions |
FLL, digital filter, auto zero, offset, calculation, measurement mode (15 types), judgment value memory (4 sets), decimal point shift, display digit changing, display of various errors, etc. |
|||
|
Rating |
Power voltage |
24 VDC ±10%, Ripple (P-P): 10% max. |
||
|
Current consumption |
240 mA max. |
|||
|
Environmental resistance |
Ambient temperature |
0 to 50°C 32 to 122 °F |
||
|
Relative humidity |
35 to 85%, No condensation |
|||
|
Vibration resistance |
10 to 55 Hz, Double amplitude 1.5 mm 0.06", 2 hours in each of the X, Y, and Z directions |
|||
|
Weight |
Approx. 235 g |
|||
|
*1 The above data was obtained using an iron target (S45C, SS400, t=1 mm 0.04"). When measuring aluminum, copper, or stainless steel targets, refer to the linear characteristics for these materials. |
||||
