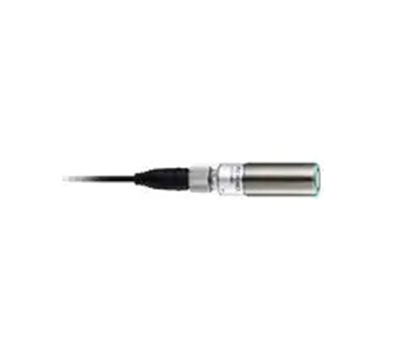

Sensor
|
Model |
FW-H07 |
|||
|
Type |
Standard type |
|||
|
Detecting area |
150 to 700 mm 5.9" to 27.6"*1 |
|||
|
Response speed |
300 ms |
|||
|
Temperature characteristics |
0.25% of F.S./°C *2*3 |
|||
|
Indicator lamp |
Operation indicator (orange) x1 (Turns on when the power is turned on.) |
|||
|
Dimensions |
M18 x P1, Length= 63.5 mm 2.50" |
|||
|
Environmental resistance |
Enclosure rating |
IP67 |
||
|
Ambient temperature |
-25 to +70 °C -13 to 158 °F (No freezing) |
|||
|
Relative humidity |
35 to 85 % RH (No condensation) |
|||
|
Vibration resistance |
10 to 55 Hz, Double amplitude 1.5 mm 0.06", 2 hours in each of the X, Y, and Z axis |
|||
|
Material |
Brass-nickel plating, PBT, Polyurethane, Polyamide resin |
|||
|
Accessories |
M18 nut: 2, Head cable: 2 m 6.6', Standard Mounting Bracket (FW-B01) |
|||
|
Weight |
Approx. 89 g |
|||
|
*1 Less stable zones of approx. 2% of F.S. exist at both ends of the detecting range. |
||||
