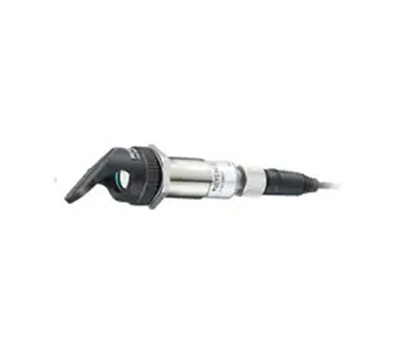

Side View Attachment

Model

FW-SV01

Sensor head model
combination

FW-H02,FW-H07,FW-H10R

Detecting area

50 to 180 mm2.0" to 7.1" (FW-H02),
150 to 630 mm5.9" to 24.8" (FW-H07),
150 to 900 mm5.9" to 35.4" (FW-H10R)^*1

Environmental resistance

Ambient temperature

-25 to +70 °C -13 to 158 °F (No freezing)

Relative humidity

35 to 85 % RH (No condensation)

Vibration resistance

10 to 55 Hz, Double amplitude 1.5 mm 0.06", 2 hours in each of the X, Y, and Z axis

Material

PPS

Accessories

M18 nut: 1, Wave washer: 1

Weight

Approx. 15 g
