Sensor
|
Model |

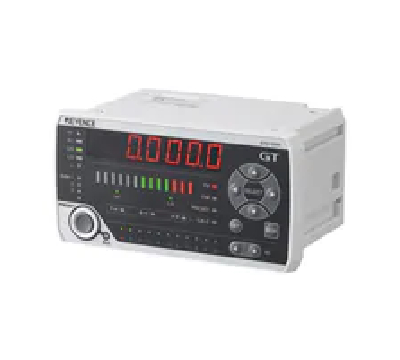

GT2-100N |
|||
|
Mounting method |
Panel mount/Screw mounting using optional mounting bracket |
|||
|
Output |
NPN output |
|||
|
Main unit/expansion unit |
- |
|||
|
Power supply voltage |
20 to 30 VDC, including 10 % ripple (P-P), Class 2 |
|||
|
Power consumption |
Normal |
4,500 mW max. (30 V, 150 mA max.) |
||
|
Power saving (Eco) |
3,600 mW max. (30 V, 120 mA max.)*1 |
|||
|
Display power |
Measured value display |
6 + 1/2-digit 7-segment LED (red) |
||
|
Other displays |
2-color, 13-level bar LED display (red, green), indicators (red, green) |
|||
|
Display range |
-199.999.9 to 199.999.9 |
|||
|
Display resolution |
0.1 μm 0.004 Mil |
|||
|
Control input |
Timing/preset/ |
No-voltage input |
||
|
Control output |
HH/HI/GO/LO/LL |
NPN open collector, 40 V 50 mA or less*2, residual voltage 1 V or less |
||
|
Response time |
hsp(3)/5/10/100/500/1,000 ms |
|||
|
Environmental resistance |
Ambient temperature |
-10 to +50 °C 14 to 122 °F |
||
|
Relative humidity |
35 to 85 % RH (No condensation) |
|||
|
Vibration resistance |
10 to 55 Hz, Double amplitude 0.15 mm 0.006", 2 hours in each of the X, Y, and Z directions |
|||
|
Material |
Main body case: Polycarbonate, Key top: Polyacetal, Front sheet: PET |
|||
|
Power supply/I/O cable |
Power supply: Terminal block, I/O: 20-pin connector (MIL standard) |
|||
|
Weight |
Approx. 380 g |
|||
|
*1 For GT2-100 Series, when the maximum number of sensor heads are connected and all units are set to power saving mode. |
||||
