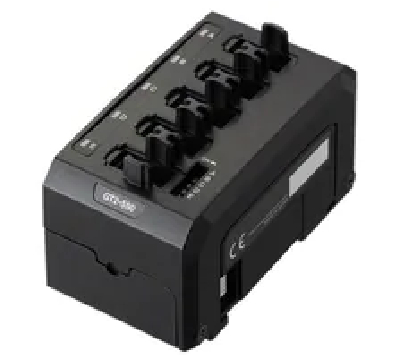

Amplifier expansion unit supporting multi-head connection

Model

GT2-550

Mounting method

DIN-rail mount^*1

Main unit/expansion unit

Expansion unit

Power supply voltage

20 to 30 VDC, including 10 % ripple (P-P) (GT2-550 power supplied from the main unit), Class 2

Response time

hsp(3)/5/10/100/500/1,000 ms
(When using GT2-Pxxx, hsp(12)/20/40/400/2,000/4,000 ms)

Number of expandable units

Maximum of 3 units including the main unit
(Maximum of 15 sensor heads)^*2

Rating

Power consumption

4,800 mW, 160.0 mA or less at 30 V

Environmental resistance

Ambient temperature

-10 to +50 °C 14 to 122 °F

Relative humidity

35 to 85 % RH (No condensation)

Vibration resistance

10 to 55 Hz, Double amplitude 1.5 mm 0.06", 2 hours in each of the X, Y, and Z directions

Materials

Main body

Main body case: polycarbonate, Cable: PVC

Weight

Approx. 95 g
