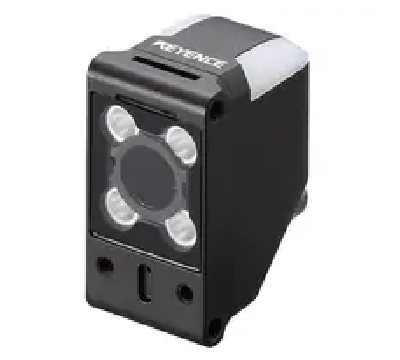

Sensor Head, Standard, Color, Automatic focus model

Model

IV-HG500CA

Type

Standard sensor model

Installed distance

20 to 500 mm 0.79" to 19.69"

View

Installed distance 20 mm 0.79": 10 (H) × 7.5 (V) mm 0.39" (H) × 0.30" (V) to
Installed distance 500 mm 19.69": 200 (H) × 150 (V) mm 7.87" (H) × 5.91" (V)

Image sensor

Type

1/3 inch color CMOS

Pixel

752 (H) × 480 (V)

Focus adjustment

Auto^*1

Exposure time

1/10 to 1/50,000

Lights

Illumination

White LED

Lighting method

Pulse lighting/DC lighting is switchable

Indicators

2 (the same display details for both indicators)

Environmental resistance

Enclosure rating

IP67^*2

Ambient temperature

0 to +50 °C 32 to 122 °F (No freezing)

Relative humidity

35 to 85 % RH (No condensation)

Vibration resistance

10 to 55 Hz, Double amplitude 1.5 mm 0.06", 2 hours in each of the X, Y, and Z directions^*3

Shock resistance

500 m/s², 3 times in each of 6 directions^*3

Material

Main unit case: Zinc die-casting, Front cover: Acrylic (hard coat), Operation indicator cover: TPU

Weight

Approx. 75 g
