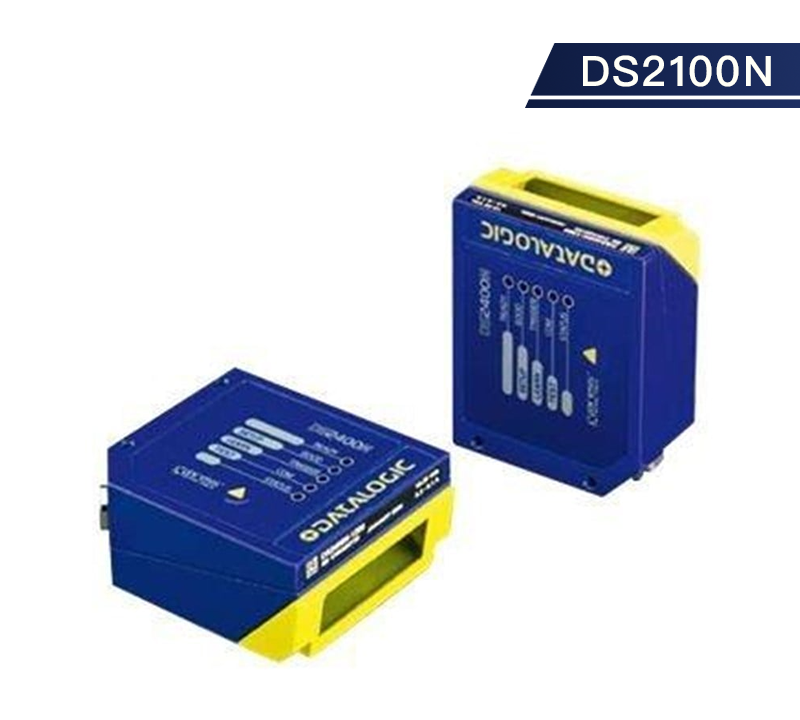

Laser Barcode Scanner Compact Laser Scanner

Highlights
ThenewDS2100Nlaserreadertakes advantage of Datalogic’s successful experiencein1Dbarcodereading, satisfying the demanding application needs of the largest manufacturers worldwide. DS2100N provides greater profi tability andproductivityinthemost commonwarehousing, shopfloorand OEM applications.

• PERFORMANCE

DS2100N grants high reliability whenreadingdifficultbarcodes thankstoitshighperformance optics and using ACB™ reconstruction technology. DS2100N offershighimmunitytoambientlight throughlasermodulationin a very compact and robust housing with IP65 protection.

• ID-NET^™

TheDS2100N is equippedwiththe built-in ID-NET™ interface, used for high-speed scanner interconnection. ID-NET™ allows faster and more efficientdatacollectionwithoutthe need for an external multiplexer device. This translates into overall cost reduction and easier system wiring.

• X-PRESS™ HMI

X-PRESS™ is the intuitive Human Machine Interface designed to improve ease of installation and maintenance. Status and diagnostic information are clearly presented bymeans of a fi ve LEDbar-graph, whereas the single multi-function key gives immediate access to relevant functionssuchasTestMode(for bar code verifi cation), AutoLearn (for bar code self-detection) and Auto-Setup (for scanner self-adjusting). This makesany user’s workeasier.

• GENIUS™

TheDS2100Nscannercanbeeasily programmed through the intuitive and multi-language Genius™ SW tool.Thankstothewizardapproach and graphic add-ons, the scanner confi guration will be accomplished rapidly.

Applications

• Automated warehousing
• Conveyor sorting

Picking systems Automated shopfl oor

• Items and parts tracking
• Process control and Packaging

OEM

• Document Handling
• Print & Apply
• Automatic chemical and biomedical analysis machines

Models

Order n° models	Description
930153183	DS2100N-1200 STD-RES, LINEAR, NSC
930153184	DS2100N-2200 HIGH-RES, LINEAR, NSC
930153185	DS2100N-1210 STD-RES, RASTER, NSC
930153186	DS2100N-2210 HIGH-RES, RASTER, NSC
930153187	DS2100N-1204 STD-RES, LINEAR, HI-PERF, NSC
930153188	DS2100N-1214 STD-RES, RASTER, HI-PERF, NSC
930153189	DS2100N-2204 HIGH-RES, LINEAR, HI-PERF, NSC
930153190	DS2100N-2214 HIGH-RES, RASTER, HI-PERF, NSC

Accessories

Order n° models	Description
93ACC1839	OM2000N OSCILLATING MIRROR, NSC
93A201108	GFC-200 85° MIRROR CONTACT READING, NSC
93A201000	GFC-2100 90° Reading Mirror

Technical Data

DIMENSIONS	84 x 68 x 34mm(3.31 x 2.68 x 1.34in)
WEIGHT	330 g (11.6 oz)
CASE MATERIAL	Aluminum
OPERATING TEMP.	0 to 45°C(32 to113°F)
STORAGE TEMP.	-20to70°C (-4 to158°F)
HUMIDITY	90% non condensing
VIBRATION RESISTANCE	IEC 68-2-6 test FC 1.5 mm; 10 to 55 Hz; 2 hours on each axis
SHOCK RESISTANCE	IEC 68-2-27 test EA30 G; 11ms; 3 shocks on each axis
PROTECTION CLASS	IP65
LIGHT SOURCE	Visiblelaser diode (630 to 680 nm)
SCANNING SPEED	500 to 1000 scans/sec (SW programmable)
MAX. RESOLUTION	Up to 0.12 mm (5 mils)
MAX. READING DISTANCE	Up to 310 mm (12.2 in) on 0.50 mm (20 mils) bar codes

Reading Diagrams
