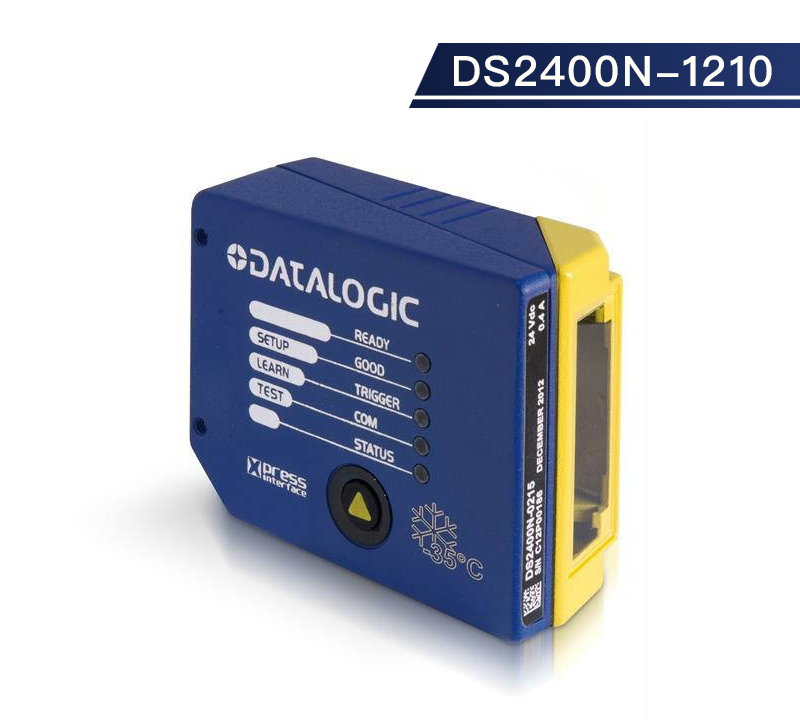

Laser Barcode Scanner Compact Laser Scanner
- Large temperature range -35°C to
- 45°C
- Low temperature connection and
- backup & restore modules
- IP65 rugged industrial housing
- Embedded ID-NETTM high speed
- connectivity to simplify data
- collection and cluster wiring
- Intuitive X-PRESSTM interface for
- quick scanner installation and
- troubleshooting
- Easy setup through multi-language
- GeniusTM SW tool
- ACBTM advanced code builder
- technology improves the read rate
- on damaged bar codes
Refrigerated Warehousing
- Conveyor sorting
- Picking systems
- Tote Reading
- Print & Apply Verification
- Dimension, weigh, scan food packaging
Technical Data
|
Dimensions |
84 x 68 x 34 mm (3.31 x 2.68 x 1.34 in) |
|
Weight |
340 g (12 oz) |
|
Case Material |
Aluminium |
|
Maximum Warm Up Time |
@ -35°C: 20 minutes |
|
Operating Temperature¹ |
-35°C to 45°C (-31°F to 113°F) |
|
Storage Temperature |
-35°C to 70°C (-31°F to 158°F) |
|
Humidity |
90% non condensing |
|
Vibration Resistance |
IEC 68-2-6 test FC 1.5 mm; 10 to 55 Hz; 2 hours on each axis |
|
Shock Resistance |
IEC 68-2-27 test EA 30 G; 11 ms; 3 shocks on each axis |
|
Protection Class |
IP65 |
|
Scanning Speed |
600 to 1000 scans/sec (SW programmable) |
|
Max. Resolution |
Up to 0.20 mm (8 mils) |
|
Max. Reading Distance |
Up to 600 mm (23.6 in) on 0.50 mm (20 mils) bar codes |
|
Max. Depth of Field |
Up to 400 mm (15.7 in) on 0.50 mm (20 mils) bar codes |
|
Aperture Angle |
50 degrees |
|
Readable Codes |
Code 2/5, Code 39, Code 93, Code 128, EAN/UPC, EAN 128, Codabar, Pharmacode, ISBN128 |
|
Multilabel Reading |
Up to 10 different symbologies during the same reading phase |
|
Communication Interface |
Main port RS232/RS485 SW selectable up to 115.2 kbps Aux. port RS232 up to 115.2 kbps ID-NET™ port up to 1 Mbps |
|
Device Programming |
Genius™ SW configuration tool X-PRESS™ human machine interface Serial host mode programming sequences |
|
Operating Modes |
‘On line’, ‘Serial On-line’, ‘Automatic’, ‘Continuous’, ‘Test’, ‘Verifier’ |
|
Input Signal |
External Trigger (optocoupled, NPN/PNP), IN2 (not optocoupled, NPN only) |
|
Output Signal |
OUT1, OUT2 SW programmable event driven (optocoupled, NPN/PNP) |
|
Laser Classification |
IEC 825-1 Class 2; CDRH Class II |
|
Laser Control |
Security system to turn laser off in case of motor slow down or failure |
|
Motor Control |
Motor ON/OFF command string and motor speed SW programmable |
|
Power Supply |
24 VDC+/-10% |
|
Power Consumption |
9.6W |
|
¹The operating temperature is guaranteed under the following conditions:
|
|
Models
|
ORDER NO. |
DESCRIPTION |
|
930181415 |
DS2400N-0205 SHORT RANGE,LIN,NSC,SUBZERO |
|
930181416 |
DS2400N-0215 SHORT RANGE,RAS,NSC,SUBZERO |
|
930181417 |
DS2400N-1205 MEDIUM RANGE,LIN,NSC,SUBZER |
|
930181418 |
DS2400N-1215 MEDIUM RANGE,RAS,NSC,SUBZER |
|
930181419 |
DS2400N-2205 LONG RANGE,LIN,NSC,SUBZERO |
|
930181420 |
DS2400N-2215 LONG RANGE,RAS, NSC,SUBZERO |
Accessories
| ORDER NO. | DESCRIPTION |
| 93A301069 | CBX100LT CONN. BOX COMPACT LOW TEMP. |
| 93ACC1808 | BM100 BACKUP MODULE |
