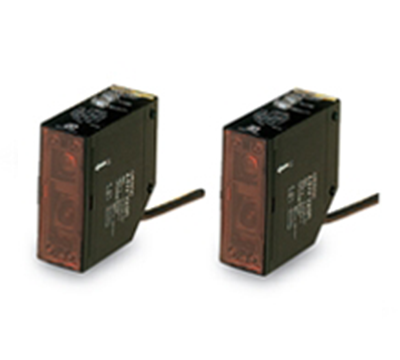

Features
• Measurement point: 25 mm;
measurement range: ±4 mm.
• Easy adjustment, range/stable light indicators.
• Easy-to-use built-in Amp.
• High-speed response: 5 ms.
• Visible beam spot.
• Enclosure rating: IP66.
Lineup
| Sensing distance |
Resolution |
Model |
| 25±4 mm |
10 μm |
Z4W-V25R 5M |
Specifications
| Measurement range |
±4 mm |
| Measurement point |
25±1 mm |
| Light source |
Red LED |
| Spot diameter |
2-mm dia. (at measurement point) |
| Resolution |
10 microns (See Note. 1) |
| Linearity |
±3% FS (See Note. 2) |
| Response time |
5 ms (In case of white alumina ceramic. Linearity change according to object.) |
| Temperature characteristics |
±0.3% FS/°C |
| Warming up time |
3 min (within 1% of stable value) |
| Indicators |
Stability:
Stable range: Lit green
Operating range: Not lit
Dark: Lit red
Range:
In range: Green
Out of range: Red |
| Outputs |
Analog output:
4 to 20 mA/±4 mm
Load impedance: 300Ω max.
DARK output:
NPN open collector
50 mA max., 30 VDC
Residual voltage: 1 V max. |
| External light |
3,000 ln (incandescent light) |
| Power supply voltage |
12 to 24 VDC±10%: ripple (p-p) 10% max. |
| Current consumption |
80 mA max. |
| Vibration resistance |
Destruction: 10 to 55 Hz (1.5-mm double amplitude) for 2 sweeps of 15 min each in X, Y, and Z directions |
| Shock resistance |
Destruction: 500 m/s2 for 3 times each in X, Y, and Z directions |
| Ambient temperature |
Operating: -10° to 55°C (with no icing) |
| Ambient humidity |
35% to 85% (with no icing) |
| Degree of protection |
IP66 |
| Weight |
150 g (with 5-m cable); 50 g (without cable) |
| Attachments |
Mounting bracket, mounting screws, resistor (250Ω, 0.5 W) |
Note: 1. Resolution
The resolution is the peak-to-peak displacement conversion value of the analog output.
(Conditions: white alumina ceramic at the measurement point)

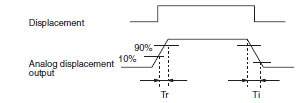

Note: 2. Response Time
The delays are the 10% to 90% rising and falling times of the analog output in response to a sudden change in
the displacement.

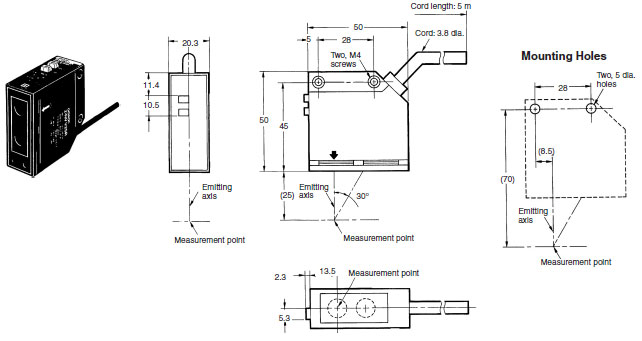

Dimensions
With Mounting Bracket 1
* A mounting bracket can be attached to this face of the sensor.
** This distance can be extended up to 44.5 mm. When this distance is 44.5 mm in length, the angle of the optical axis
can be adjusted after mounting by approximately ±5 max.
With Mounting Bracket 2
* A mounting bracket can be attached to this face of the sensor.
