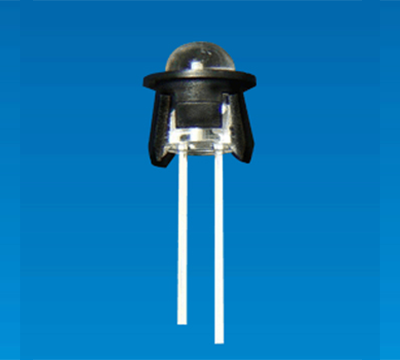

LED HOUSING CLED-1H

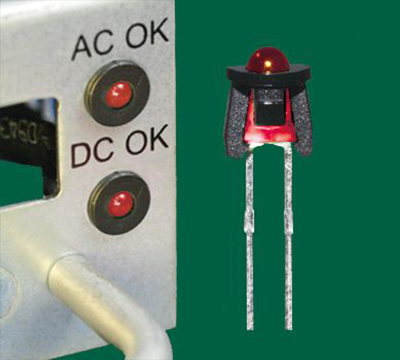

- To mount LED lamp on the panel.
- Suit for Ø3 2pin LED lamp.
LED HOUSING CLED-1H
FEATURES
SPECIFICATION
FEATURES
- To mount LED lamp on the panel.
- Suit for Ø3 2pin LED lamp.
SPECIFICATION
- MATERIAL: NYLON66 (UL)
- FLAME CLASS: 94V-2
- COLOR: BLACK
| PART NO | A | B | C | D | E | F |
T |
G |
PACKAGE |
| CLED-1H | 5.0 | Ø5.5 | Ø5.0 | Ø3.0 | 3.15 | 0.5 | 1.0~1.1 | Ø3.9 | 2000 |
| CLED-1W | 5.5 | Ø5.8 | Ø4.7 | Ø3.0 | 3.0 | 0.5 | 1.2~1.3 | Ø3.9 | |
| CLED-2D | 5.2 | Ø5.6 | Ø5.0 | Ø3.0 | 3.1 | 0.3 | 0.8 | Ø3.9 | |
| CLED-3F | 6.4 | Ø5.5 | Ø4.5 | Ø3.0 | 4.2 | 0.4 | 0.8 | Ø3.9 | |
| CLED-3GX | 8.15 | Ø5.5 | Ø4.5 | Ø3.0 | 5.95 | 2.5 | 4.0 | Ø3.3~3.5 | |
| CLED-3Q | 4.8 | Ø5.6 | Ø5.0 | Ø3.0 | 2.7 | 0.4 | 0.7~0.9 | Ø3.3~3.5 |
