Components & Accessories

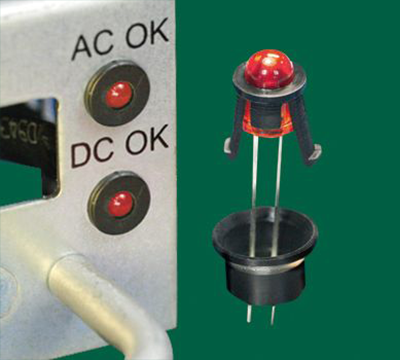

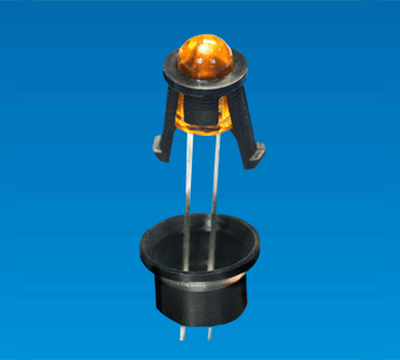

LED HOUSING CLED-2
- To mount LED lamp on the panel.
- Suit for Ø5 2pin LED lamp.
LED HOUSING CLED-2
FEATURES
SPECIFICATION
FOR Ø5 2PIN LED
FEATURES
- To mount LED lamp on the panel.
- Suit for Ø5 2pin LED lamp.
SPECIFICATION
- MATERIAL: NYLON66 (UL)
- FLAME CLASS: 94V-2
- COLOR: BLACK
- ALSO CAN ASSEMBLE WITH UW-1
FOR Ø5 2PIN LED

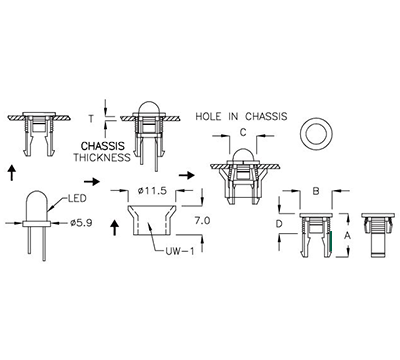

| PART NO | A | B | C | D | T CHASSIS THICKNESS |
PACKAGE |
| CLED-2 | 10.5 | Ø7.8 | Ø6.5 | 4.85 | 1.0 | 2000 |
| CLED-10YS | 10.5 | Ø7.8 | Ø6.2 | 4.65 | 0.7~1.0 |
