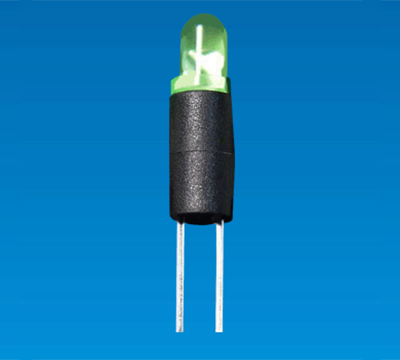

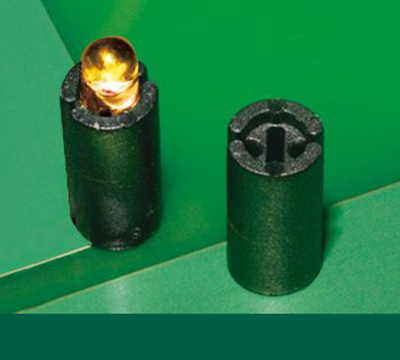

LED HOUSING EDG-02
- Stand LED lamp on circuit board.
- Pad LED with distance from circuit board.
- Suit Ø3,Ø5 2pin LED lamp.
LED HOUSING EDG-02
FEATURES
SPECIFICATION
FOR Ø3 & Ø5 2PIN LED
FEATURES
- Stand LED lamp on circuit board.
- Pad LED with distance from circuit board.
- Suit Ø3,Ø5 2pin LED lamp.
SPECIFICATION
- MATERIAL: NYLON66 (UL)
- FLAME CLASS: 94V-2
- COLOR: NATURAL, BLACK
- BUILT-IN CLAMP FUNCTION
FOR Ø3 & Ø5 2PIN LED
| PART NO | A | B | PACKAGE |
| EDG-02 | 2.0 | Ø5.2 | 2000 |
| EDG-3M | 3.5 | Ø5.2 | |
| EDG-04 | 4.0 | Ø5.2 | |
| EDG-4A | 4.5 | Ø5.2 | |
| EDG-05 | 5.0 | Ø5.2 | |
| EDG-5A | 5.5 | Ø5.2 | |
| EDG-06 | 6.0 | Ø5.2 | |
| EDG-6A | 6.5 | Ø5.2 | |
| EDG-07 | 7.0 | Ø5.2 | |
| EDG-7A | 7.5 | Ø5.2 | |
| EDG-08 | 8.0 | Ø5.2 | |
| EDG-8A | 8.5 | Ø5.2 | |
| EDG-09 | 9.0 | Ø5.2 | |
| EDG-9A | 9.5 | Ø5.2 | |
| EDG-10A | 10.0 | Ø5.2 | |
| EDG-10C | 10.5 | Ø5.2 | |
| EDG-11 | 11.0 | Ø5.2 | |
| EDG-11A | 11.5 | Ø5.2 | |
| EDG-12 | 12.0 | Ø5.2 | |
| EDG-12A | 12.5 | Ø5.2 |
