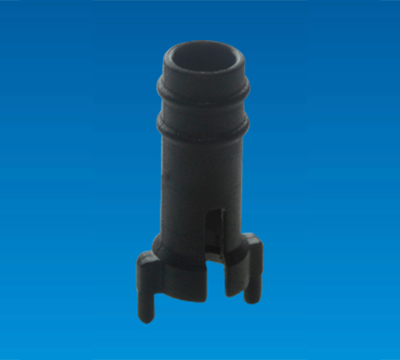

LED HOUSING EDZ-2A

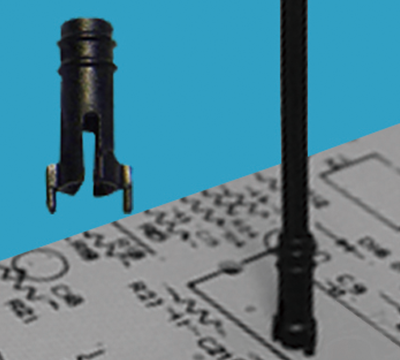

- The Plastic OPTICAL fiber lead led light from source to panel.
- To snap and assembly the unit into the hole of panel.
- High light transmission capability.
- Free from the limitation of space, angle and distance of design for light source.
- No extra cost needed for developing new tool.
LED HOUSING EDZ-2A
FEATURES
SPECIFICATION
FOR Ø3 2 PIN LED LAMP
FEATURES
- The Plastic OPTICAL fiber lead led light from source to panel.
- To snap and assembly the unit into the hole of panel.
- High light transmission capability.
- Free from the limitation of space, angle and distance of design for light source.
- No extra cost needed for developing new tool.
SPECIFICATION
- MATERIAL: NYLON66 (UL)
- FLAME CLASS: 94V-2
- COLOR: BLACK
FOR Ø3 2 PIN LED LAMP
| PART NO | A | B | C | FIBER DIAMETER | PACKAGE |
| EDZ-2A | 12.5 | Ø4.9 | 7.0 | Ø3.0 | 1000 |
