Components & Accessories

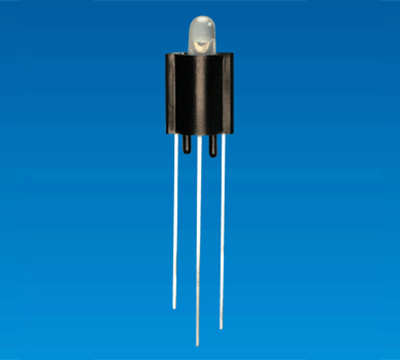

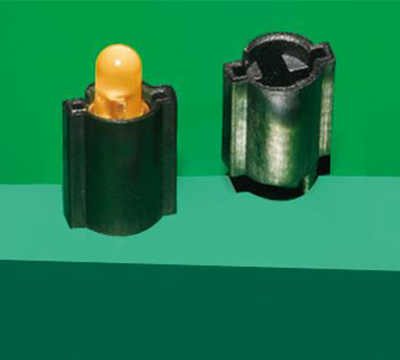

LED HOUSING EQA-7PQ
- Stand LED lamp on circuit board.
- Pad LED with distance from circuit board.
- Suit for 3mm 2,3pin LED lamp.
- Right angle design with mount feet.
LED HOUSING EQA-7PQ
FEATURES
SPECIFICATION
FOR Ø3 2PIN, 3PIN LED
FEATURES
- Stand LED lamp on circuit board.
- Pad LED with distance from circuit board.
- Suit for 3mm 2,3pin LED lamp.
- Right angle design with mount feet.
SPECIFICATION
- MATERIAL: NYLON66 (UL)
- FLAME CLASS: 94V-2
- COLOR: BLACK
- BUILT-IN CLAMP FUNCTION
FOR Ø3 2PIN, 3PIN LED
| PART NO | A | B | C | PACKAGE |
| EQA-7PQ | 7.0 | Ø5.4 | 8.5 | 1000 |
