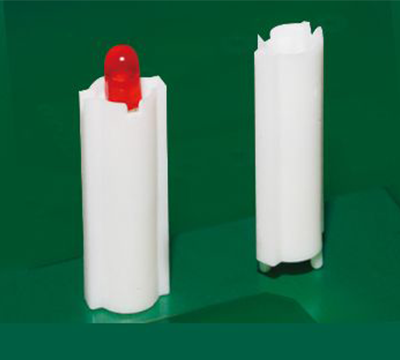

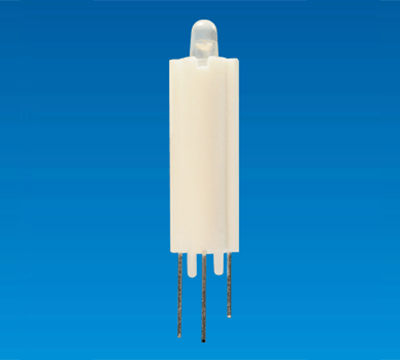

LED HOUSING EQF-19
- Stand LED lamp on circuit board.
- Pad LED with distance from circuit board.
- Suit for Ø3 2,3pin LED lamp.
LED HOUSING EQF-19
FEATURES
SPECIFICATION
FOR Ø3 2PIN, 3PIN LED
FEATURES
- Stand LED lamp on circuit board.
- Pad LED with distance from circuit board.
- Suit for Ø3 2,3pin LED lamp.
SPECIFICATION
- MATERIAL: NYLON66 (UL)
- FLAME CLASS: 94V-2
- COLOR: NATURAL
- BUILT-IN CLAMP FUNCTION
FOR Ø3 2PIN, 3PIN LED

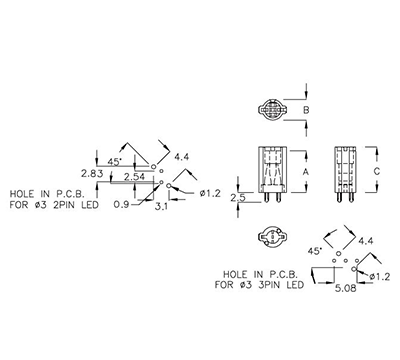

| PART NO | A | B | C | PACKAGE |
| EQF-19 | 19.0 | Ø5.4 | 20.0 | 1000 |
