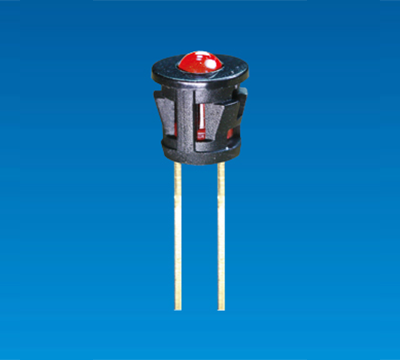

LED HOUSING KLED-3A
FEATURES
SPECIFICATION
FOR Ø3 2PIN or 3PIN LED
FEATURES

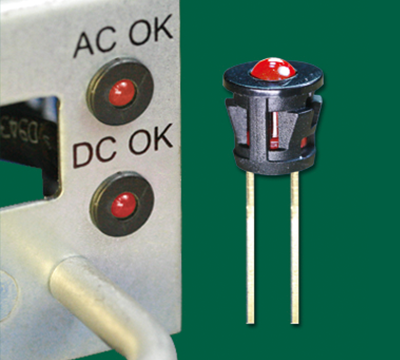

- To mount LED lamp on the panel.
- Suit for Ø3 LED lamp.
SPECIFICATION
- MATERIAL: NYLON66 (UL)
- FLAME CLASS: 94V-2
- COLOR: BLACK
FOR Ø3 2PIN or 3PIN LED
| PART NO | A | B | C | D | E | G |
T |
FROM | Ø3 LED | PACKAGE |
| KLED-3A | 5.6 | Ø6.0 | Ø5.3 | Ø3.0 | 2.95 | Ø4.0 | 1.0 | 1 | 2PIN | 2000 |
| KLED-3MK | 5.6 | Ø6.0 | Ø5.3 | Ø3.0 | 2.95 | Ø4.0 | 0.9 | |||
| KLED-3JL | 5.0 | Ø5.5 | Ø5.0 | Ø2.9 | 1.9 | Ø3.2 | 0.8 | |||
| KLED-3PH | 5.2 | Ø5.6 | Ø4.95 | Ø3.1 | 2.2 | Ø4.0 | 0.8 | |||
| KLED-3CF | 5.6 | Ø5.6 | Ø5.0 | Ø3.1 | 2.6 | Ø4.0 | 1.0 | |||
| KLED-3HS | 5.2 | Ø6.0 | Ø5.3 | Ø2.95 | 2.55 | Ø3.2 | 0.9 | |||
| KLED-3YM | 5.2 | Ø6.0 | Ø5.3 | Ø2.95 | 3.15 | Ø3.2 | 0.9 | |||
| KLED-3TB | 5.7 | Ø6.0 | Ø5.2 | Ø3.0 | 2.6 | Ø4.0 | 1.0 | |||
| KLED-3WT | 5.7 | Ø6.0 | Ø5.2 | Ø3.0 | 2.8 | Ø4.0 | 1.0 | |||
| KLED-3RG | 5.6 | Ø6.0 | Ø5.2 | Ø3.0 | 2.85 | Ø4.0 | 0.8 | 2 | 3PIN |
