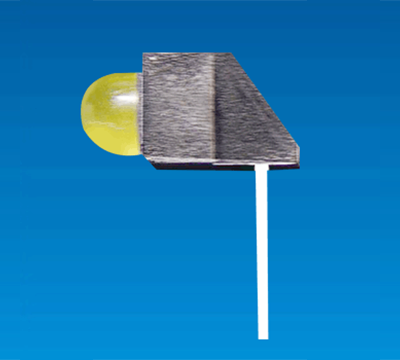

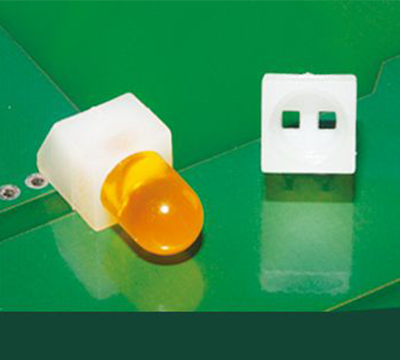

LED HOUSING LED-2F
- To stand LED lamp on circuit board.
- Pads LED lamp with distance from circuit board.
- Suit for 5mm,3mm 2 pin LED Lamps.
- Right angle mount design.
LED HOUSING LED-2F
FEATURES
SPECIFICATION
FOR Ø5, Ø3 2PIN LED
FEATURES
- To stand LED lamp on circuit board.
- Pads LED lamp with distance from circuit board.
- Suit for 5mm,3mm 2 pin LED Lamps.
- Right angle mount design.
SPECIFICATION
- MATERIAL: NYLON66 (UL)
- FLAME CLASS: 94V-2
- COLOR: NATURAL, BLACK
- BUILD-IN CLAMP FUNCTION
FOR Ø5, Ø3 2PIN LED
| PART NO | A | B | C | D | E | F | PACKAGE |
| LED-2F | 3.0 | 5.6 | Ø5.0 | Ø4.1 | 2.0 | 3.5 | 1000 |
