Components & Accessories

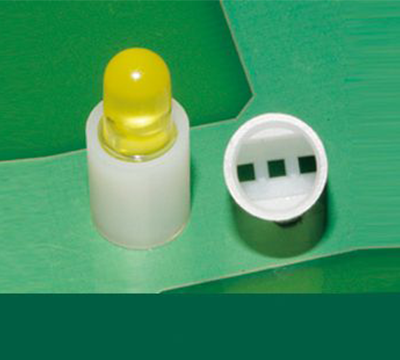

LED HOUSING LED-5Sx3
- Stand LED lamp on circuit board.
- Pad LED with distance from circuit board.
- Suit for Ø5,3pin LED lamp.
LED HOUSING LED-5Sx3
FEATURES
SPECIFICATION
FOR Ø5 3PIN LED
FEATURES
- Stand LED lamp on circuit board.
- Pad LED with distance from circuit board.
- Suit for Ø5,3pin LED lamp.
SPECIFICATION
- MATERIAL: NYLON66 (UL)
- FLAME CLASS: 94V-2
- COLOR: NATURAL
FOR Ø5 3PIN LED
| PART NO | A | B | D | PACKAGE |
| LED-5Sx3 | 5.0 | 7.4 | 6.0 | 2000 |
| LED-4Sx3 | 4.4 | 7.4 | 6.0 | |
| LED-5x3 | 5.5 | 7.4 | 6.5 | 1000 |
| LED-5Kx3 | 5.0 | 7.4 | 7.7 | |
| LED-7x3 | 7.0 | 7.4 | 8.0 | |
| LED-8x3 | 8.0 | 7.4 | 9.0 | |
| LED-8Mx3 | 8.5 | 7.4 | 9.5 | |
| LED-10x3 | 10.5 | 7.4 | 11.5 | |
| LED-16x3 | 13.8 | 7.1 | 16.1 | 500 |
