Components & Accessories

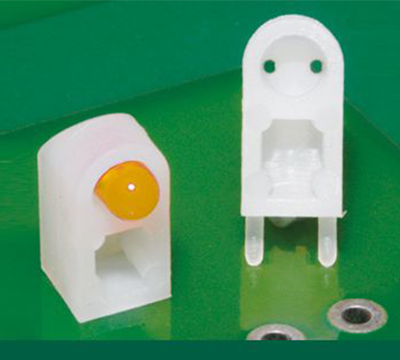

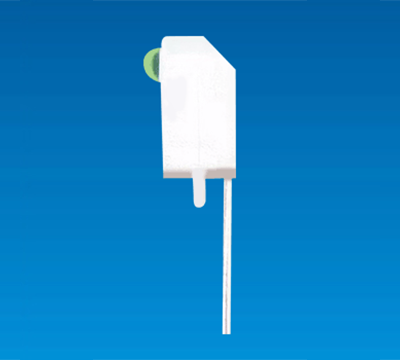

LED HOUSING LEG3-6A
- Stand LED lamp on circuit board.
- Pad LED with distance from circuit board.
- Suit for 3mm 2pin LED lamp.
- Right angle design with mount feet.
LED HOUSING LEG3-6A
FEATURES
SPECIFICATION
FOR Ø3 2PIN LED
FEATURES
- Stand LED lamp on circuit board.
- Pad LED with distance from circuit board.
- Suit for 3mm 2pin LED lamp.
- Right angle design with mount feet.
SPECIFICATION
- MATERIAL: NYLON66 (UL)
- FLAME CLASS: 94V-2
- COLOR: NATURAL
- BUILD-IN CLAMP FUNCTION
FOR Ø3 2PIN LED
| PART NO | A | B | C | F | PACKAGE |
| LEG3-6A | 6.5 | 9.2 | Ø3.6 | 1.1 | 1000 |
| LEG3-8T | 8.0 | 10.7 | Ø3.6 | 1.0 | |
| LEG3-10F | 10.6 | 13.3 | Ø4.1 | 1.0 | 500 |
| LEG3-11C | 11.6 | 14.3 | Ø4.1 | 1.0 | 2000 |
